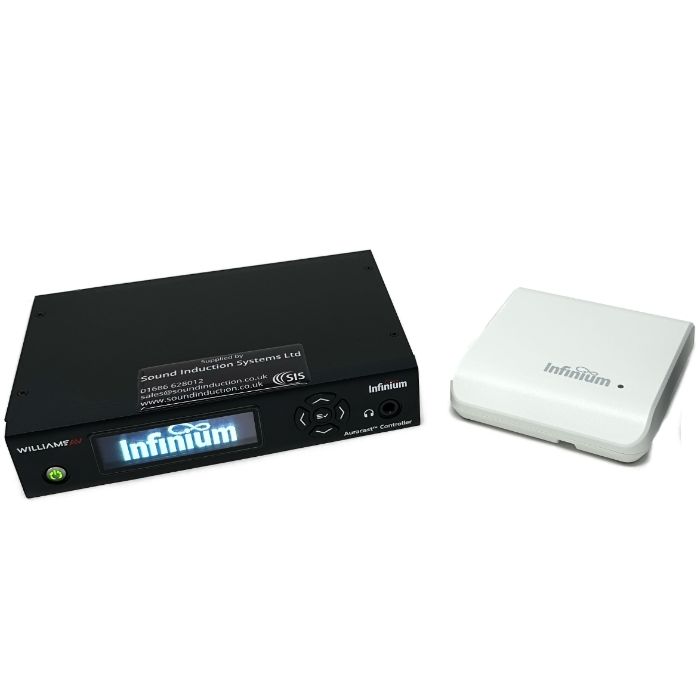

Williams AV BA CT1 Infinium controller and transmitter

General Description

The Williams AV BA CT1 Infinium is a real-time audio over Auracast system comprising a controller and separate transmitter.

Auracast is a new standard for Bluetooth Low Energy audio transmission which enables audio sharing to an unlimited number of users.

The controller integrates smoothly into AV networks, with an analogue input and a Dante® input (supporting two Dante® channels). It supports stereo and mono transmission which can be open (public) or encrypted (private). Users can easily configure, monitor, and troubleshoot via the front panel or web interface.

The audio inputs are microphone/line input via combination XLR/Jack or phoenix connector for channel 1(left), line level via phoenix connector for channel 2 (right) and two channel Dante® via RJ 45.

The controller can be free-standing or installed into a standard 19” rack. Up to 2 controllers can occupy 1 unit of rack space (optional rack mount kits are available separately).

The low-profile transmitter looks like a Wi-Fi access point and can be free-standing or ceiling/wall mounted using the supplied bracket.

The user can select the audio stream(s) by via their Auracast enabled earphones, headphones, earbuds, hearing aids, etc or a dedicated Auracast receiver such as the Infinium BA R1.

Features

Modular System Design – The transmitter and controller are housed separately, allowing flexible placement and smooth integration into AV racks.

Simplified Transmitter Installation – The transmitter requires just a single CAT cable for power and audio, reducing setup time for integrators.

Remote & Onsite Management – Configure, monitor, and troubleshoot via the front panel or web interface, with the added ability to listen to audio outside the coverage area.

Auracast™ Compatibility – Supports a wide range of personal listening devices, and a dedicated Infinium receiver, ensuring inclusive audio access.

Ideal for Use In

Theatres & Performing Arts Venues
Classrooms & Lecture Halls
Airports & Transportation Hubs
Places of Worship
Fitness Centres & Gyms

Delivery Includes

1 BA CT1 Infinium™ Auracast™ controller and transmitter
1 3m Ethernet cable

Technical Data

Controller
Dimensions 21.5 cm x 14.6 cm x 4.4 cm
Weight 1.04 kg
Colour     Black
Installation Configurations    Rack Mount: Standard 19” Rack, one EIA rack space high, 1/2 space wide
1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
Shelf: Can sit on shelf, table, podium, etc.
Temperature Range – Operating    +32° F to +122° F (0° C to 50° C)
Temperature Range – Storage    -4° F to +158° F (-20° C to 70° C)
Power Supply Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. Output: 24 VDC, 750 mA, 18W. 2.5mm ID centre positive barrel connector
Power Button Push On/Push Off latching power button.
Ethernet Control Port    (1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T
Front Panel Display    3.12” High Resolution OLED Direct Entry UI with button entry programming and status indicator selections.
Dante    (1x) RJ-45 jack.
Power Supply Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID centre positive barrel connector
PoE Power Out PoE
Compliance Approvals FCC, RoHS3, WEEE, Industry Canada/ISED, CE,  UKCA, RCM, CB Scheme

Transmitter
Dimensions 11.9 cm x 12.7 cm x 3 cm
Weight 0.18 kg
Colour White
Installation Configurations    Ceiling Mount, Wall Mount, Shelf
Temperature Range – Operating
+32° F to +122° F (0° C to 50° C)
Temperature Range – Storage    -4° F to +158° F (-20° C to 70° C)
Power    PoE (Input)
Connection RJ45 (1x) with audio, control and PoE
Power ON Indicator    Programmable LED
Transmitter Power Output    Programmable
Compliance Approvals FCC, RoHS3, WEEE, Industry Canada/ISED, CE,  UKCA, RCM, CB Scheme, Gitecki (Japan)

Cable
Ethernet Cable 10′ – CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant

Specifications are subject to change without notice
