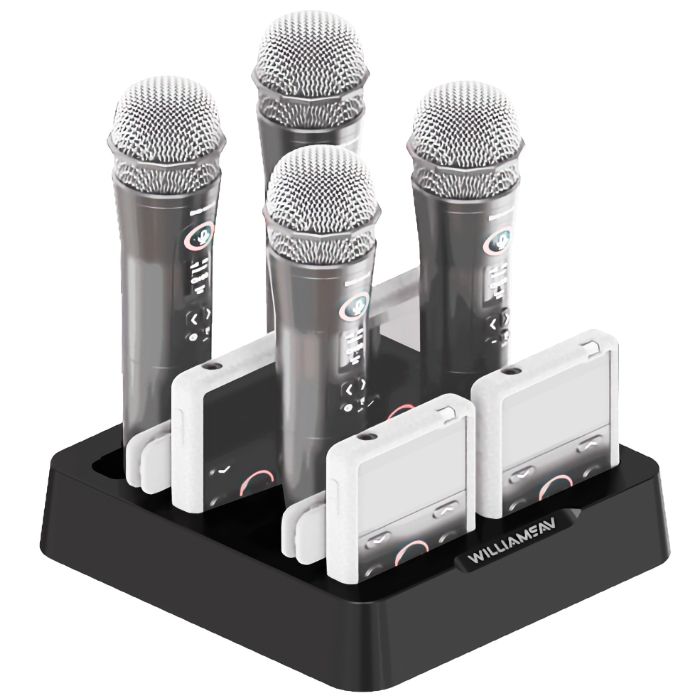

Williams AV Digi-Wave CHG 448 8-Bay charger

General Description

The Williams AV CHG 448 Digi-Wave 8-Bay desktop charger is designed to support the Digi-Wave® T410 microphone transceiver, Digi-Wave 400 bodypack transceivers, and rechargeable bodypack receivers.

It includes eight charging bays for 400 Series bodypack units, four of which are combination bays that can accept the T410 handheld transceiver.

Note: Not compatible with the Digi-Wave DLR 400 ALK (alkaline battery model).

Features

Drop-in style charging bays
Unobtrusive design

Delivery Includes

1 Williams AV Digi-Wave CHG 448 charger
1 Power supply unit

Technical Data

Dimensions: 18.6 cm L x 17.8 cm W x 5.45 cm H
Weight: 850 g
Enclosure: Black, ABS plastic with metal base
Power Supply Input:    TFP 076, 100-240 VAC input, 2 A max *
Power Supply: Universal DC adapter, 5 VDC – 6A output, centre positive
Output Rating: 5 VDC, 0.5 A per bay (8 charging bays)
Charging Time: ~5 hours
Unit Capacity: 8 Units total. 4 bays for DW T410 or DLT 400 or DLR 400 RCH. 4 bays for DLT 400 or DLR 400 RCH only.
Compatible Units: Transceiver: DW T410 or DLT 400
Receiver: DLR 400 RCH
Indicators: Charge status indicators on transceivers or receivers
Approvals: CE, RCM, WEEE, RoHS
