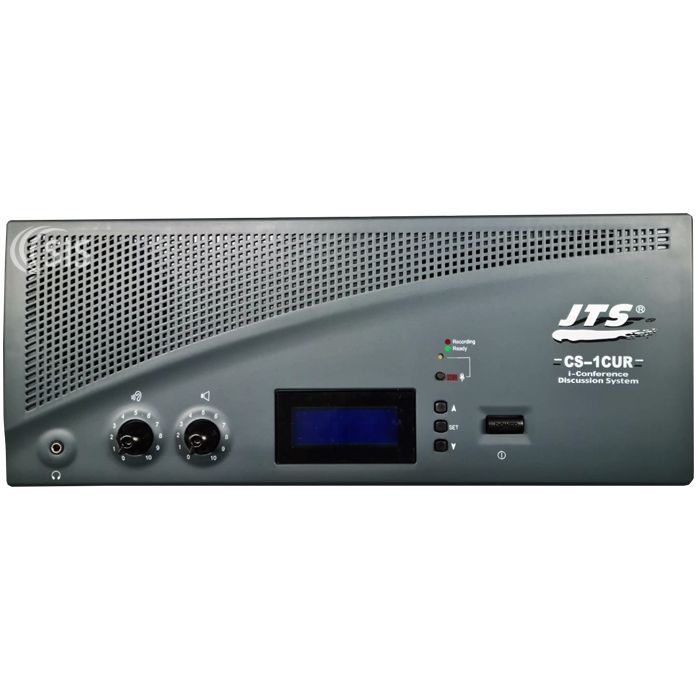

JTS CS-1CUR conference control unit
The JTS CS-1CUR is a desktop conference control unit for use with JTS CS-1CH chairperson and CS-1DU delegate units. Audio inputs and outputs enable the conference system to be integrated with other audio equipment such a digital recorder or wireless microphone. The CS-1CUR will power up to 50 conference units.
Free shipping on all orders £150 and over
General Description
The JTS CS-1CUR is a desktop conference control unit for use with JTS CS-1CH chairperson and CS-1DU delegate units. Audio inputs and outputs enable the conference system to be integrated with other audio equipment such a digital recorder or wireless microphone. The CS-1CUR will power up to 50 conference units.
Features
Internal monitor loudspeaker
Provides power to up to 50 conference units
Additional audio input and outputs
Recording via USB
Delivery Includes
1 CS-1CUR control unit
Technical Data
Type: XLR
Mic: 4.7KΩ
Line: 20KΩ
Recording Function
Interface: USB3.0 32GByte (Backward Compatible)
Format: MP3
MAX. Recording Time: More than 240 hours (With 32GByte USB)
Controls: Recording ON/OFF button / Recording status LED display / Without Playback Funciton
MAX Gain: > 70dB
Frequency Respond: 35 ~ 20,000Hz
THD% Input: <0.06%
Signal-to-noise radio: > 70 dB
Input Attenuation: -50dB
Phantom Power: +48V
Mic In Attenuation: -5dB /-10dB
Mic Attenuation: -10dB /-15dB /-20dB
Output Attenuation: -50dB
Voltage Output: +5 VDC ± 0.2V
Power Supply: 18VDC, 1A
Power Consumption: 18W
Fuse: T1AE 250V (Slow-Blow)
Weight: 2.3 kg
Dimension HxWxD: 44mm x 420mm x 198.5mm
| Manufacturer | JTS |
|---|
