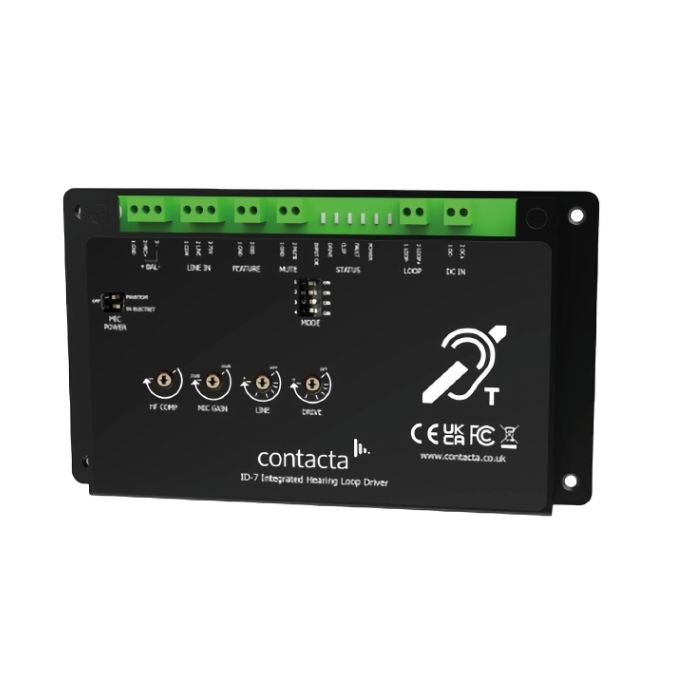

Contacta ID-7 Induction loop driver
The Contacta ID-7 is a standalone hearing loop driver designed for smaller facilities and venues. Inputs include balanced microphone, balanced line and 75v loudspeaker level.
Free shipping on all orders £150 and over
General Description
The Contacta ID-7 is a standalone hearing loop driver designed for smaller facilities and venues.
Inputs include balanced microphone, balanced line and 75v loudspeaker level. The amplifier also has an integral phase shifter to enable a second ID-7 to be connected to create a phased array system.
Features
Discreet and compact design
Wide operating power supply range (12V-24V DC only)
High output voltage allowing large hearing loops to be driven
High output current, up to 5Arms
High efficiency and cool operation
Flexible mounting options
Delivery Includes
1 Contacta ID-7 Professional induction loop driver
Technical Data
Dimensions Height – 94.4mm Width – 165mm Depth – 16.4mm
Weight 350g
Construction Mild Steel Finish Black Powder Coated
Voltage 12V - 24V DC
Current 2.5A - 4.17A
Power Supply External PSU (not supplied)
1V Line Level (or) 75V Line Level 1 x 1V Line level (from computer, etc), transformer isolated, 3.81mm screw terminal (bare wire) 1 x 75V Line level, transformer isolated, 3.81mm screw terminal (bare wire)
Microphone 1 x Microphone, selectable 12V phantom balanced via 680Ω / 5V single ended electret
Output Voltage 7V (19.79Vpk-pk) - 15Vrms (42.3Vpk-pk) @ 5Arms (14.14Apk-pk) dependent on PSU voltage
Output Current 5Arms (14.14Apk-pk) on audio peaks
Loop Connector 3.81mm screw terminal (bare wire)
Audio System
Frequency Response 80Hz to 9kHz
Distortion THD+N
HF Comp Adjustable
Adjustable Rotary trimmers and dip switches
Peak Detecting Optimised for speech
Cooling No external heatsink required
Indications LED indications for: ‘Input OK’ / ‘Drive’ / ‘Clip’ / ‘Fault’ / ‘Power’
| Manufacturer | Contacta |
|---|
