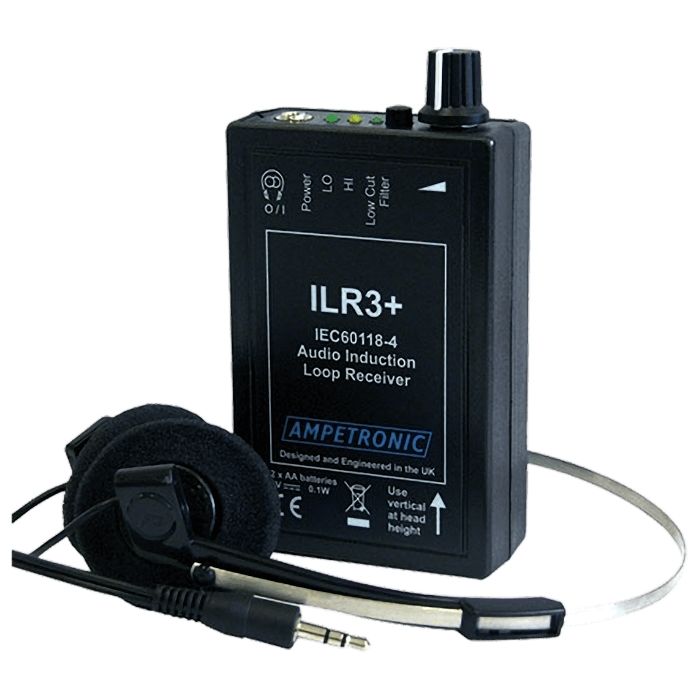

Ampetronic ILR3+ audio induction loop receiver with field strength indicators

General Description

The Ampetronic ILR3+ is a high quality audio induction loop receiver which allows the user to listen to an audio frequency induction loop system using a standard pair of stereo headphones (supplied). It has a vertically mounted pick up coil and a low cut filter function to emulate the performance of a hearing aid switched to the T position.

It is an essential tool for anyone installing maintaining or managing facilities fitted with induction loops providing them with immediate confirmation that the loop is running. Two extra LEDs (marked HI and LO) on the top of the unit provide a visual guide to the strength of the field created by the loop system. In addition, it can be used by anyone without a hearing aid who needs a little extra assistance to hear

Features
Low distortion
Flat frequency response to 6KHz
Low cut filter—to simulate hearing aid response
Volume control
5 year warranty
Auto power off with headphone removal
> 100 hours life with 2 AA batteries

Delivery Includes
1 ILR3+
1 Lightweight stereo headphones
1 Handbook
1 A5 user guide
2 AA batteries

Technical Data
Frequency Response:
Flat: 85Hz - 6kHz ± 0.5dB
Low Cut Filter: 400Hz - 8kHz -3dB (similar to a hearing aid)

Output:
3.5mm stereo jack socket – enables power when used
For use with stereo headphones (min 25W per side)
100mW into 16W, <0.5% THD @ 1kHz
Environmental:
IP30, -10°C to +45°C, 20 – 90% relative humidity

Dimensions:
62 x 26 x 112mm,
90g (excluding batteries and headphones)

Power:
2 x Alkaline AA / LR6 batteries
<0.1W 1.8V to 3.2V, >100 hours usage

Magnetic field strength indication to PPM type II referenced to 400mA/m rms:
‘Good’ ³0dB Green LED 400mA/m rms with sine
‘Okay’ ³-6dB Amber LED 200mA/m rms with sine
These levels are suggested by IEC 60118-4:2006 for such an indicating device
