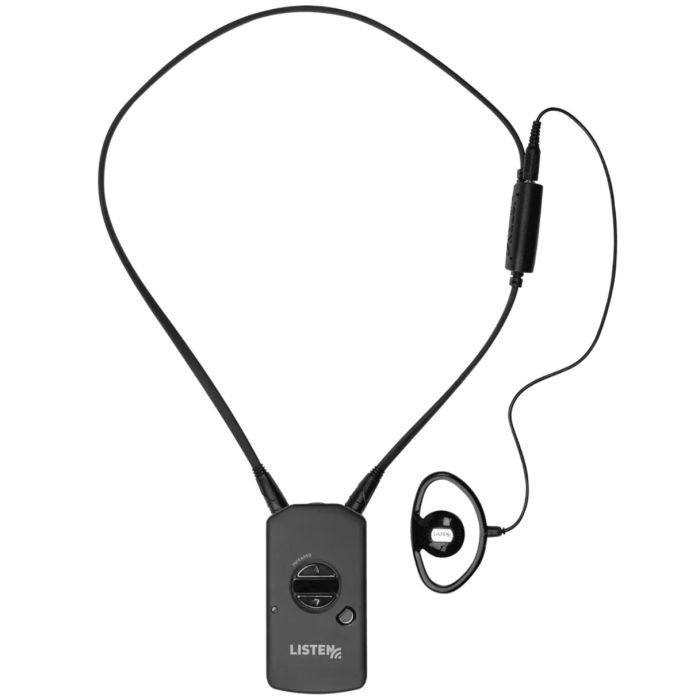

Listen Technologies LR-5200-IR-P1 infrared receiver package 1

General Description

This advanced intelligent DSP IR receiver package includes an integrated neck loop/lanyard, and a universal ear speaker, so can be used by somebody with or without a hearing aid. The LR-5200-IR is ideal for venues that have a multi-channel infrared system, as the user can quickly and easily switch channel.

The LR-5200-IR receiver has an OLED display which shows unique channel names, battery status, channel status, volume status and charge activation. Listen’s programmable channel select button allows users to cycle through active channels, seek to or lock to a channel. Connect the iDSP neck loop/lanyard, a single earphone or ear phones via two 3.5 mm output jacks (receivers can be shared). The Micro USB connection is used with the free iDSP software suite for set up, programming, inventory management, firmware updates and charging via any standard USB port.

Features

High performance IR receiver with extreme sensitivity providing the best pickup and range of any device of its kind
Listen’s programmable channel select button allows user to cycle through active channels, seek to or lock to a channel
Integrated neck loop / lanyard with DSP loop driver improves the listening experience for T-coil users
Smallest device of its kind makes it easier to wear and for venues to dispense, store and maintain
OLED display which shows unique channel names, battery status, channel status, volume status and charge activation
Can be worn around the neck or with the belt clip, making it the most discreet listening device on the market
Advanced green battery technology dramatically reduces costs of ownership and hassles while reducing the number of batteries in the landfill
Use for multi-channel applications where the users need the convenience of changing the channels themselves

Delivery Includes

1 LR-5200-IR Advanced Intelligent DSP IR Receiver
1 LA-430 Intelligent Ear Phone/Neck Loop Lanyard
1 LA-401 Universal Ear Speaker

Technical Data

LR-5200-IR Advanced Intelligent DSP IR Receiver
System Frequency Response: 63 Hz - 15 kHz (±3 dB)
System Signal to Noise Ratio    Mono: >60 dB, Stereo: >52 dB
System Distortion: <2% total harmonic distortion (THD) at 80% deviation
Audio Output Jacks: Two 3.5 mm connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard
User Controls: Power on/off, volume up/down, Listen button for end user channel selection
Set-up Controls: Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel
Programming: Via software and USB port
LED: Flashes when batteries are low or to indicate charging, solid when fully charged
Display: OLED - Channel designation, battery level, unit number, charging status, volume status
Carrier Frequencies: 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz
Number of Channels: Four selectable channels
Frequency Accuracy: ± .005% stability 0 to 50 ºC
Modulation: FM Wideband, ±50 kHz deviation max, 50 uS de-emphasis
Sensitivity: Better than one nW/cm2 @40 dB SNR
Squelch: Programmable in 20 steps, automatic on loss of IR signal
Power save Mode: Turns unit off after a specified time of no IR signal, default is 30 minutes
Coverage Area: 2787 m² single channel with LT-84/LA-141 or 3716 m² single channel with LT-82/LA-140
Battery Type: Lithium Ion
Battery Life: 8 Hours of typical use
Battery Charging Time: Fully charged in 2.5 Hours
Power Supply: Micro USB connector, 5 V, 500 mA
Dimensions (H x W x D):  9.6 x 5.0 x 1.7 cm
Dimensions with Belt Clip: 9.6 x 5.0 x 2.1 cm
Unit Weight: 53.9 g
Unit Weight with Batteries: 79.4 g
Shipping Weight: 99.2 g with a 0.45 kg minimum
Colour: Flat Black
Temperature – Operation: -10 to 40 ºC
Temperature – Storage: -20 to 50 °C
Relative Humidity: 0 to 95% relative humidity, non-condensing
