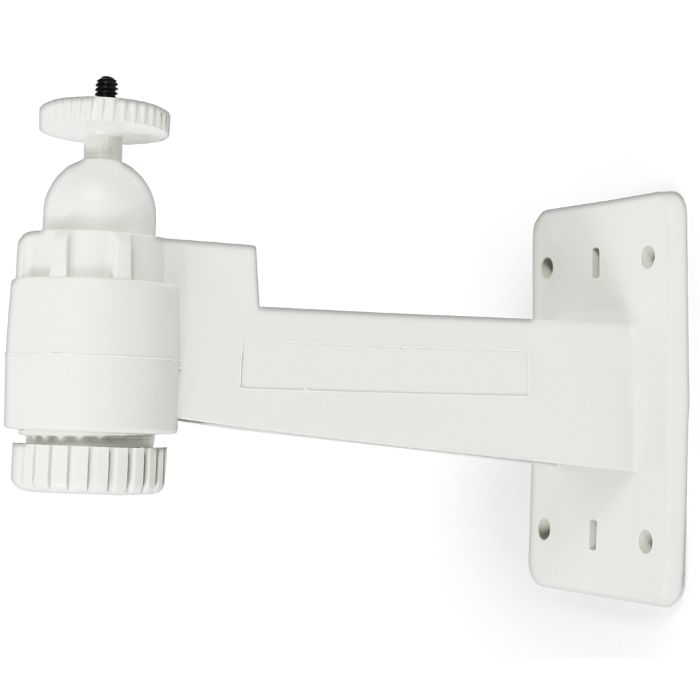

Williams AV BKT 031 junction box wall/ceiling IR mounting bracket – white

General Description

A sturdier and more robust option for IR mounting hardware. It mounts directly to the junction box when running conduit. It features a ball and socket design with 360° swivel and 90° tilt capability, 1/4”-20 male stud mount, 7” extension, and the ability to conceal connected cables. This mount is able to support greater weight load, and can also be inverse mounted.

Delivery Includes

1 BKT 031

Technical Details

Type    Wall Plate Mount
Construction    Engineered Plastic
Support Weight    4.5kg
Swivel    360°
Tilt    90°
Thread Size    1/4”-20
Extension    177.8mm
Shipping Dimensions    190.5 x 127 x 76.2mm (WxHxD)
Weight 0.23kg
Color    Light Gray
Finish    Fused Epoxy
Package Weight    0.65 lb
Box Dimensions (LxWxH)    8.2 x 5.3 x 3.2”
