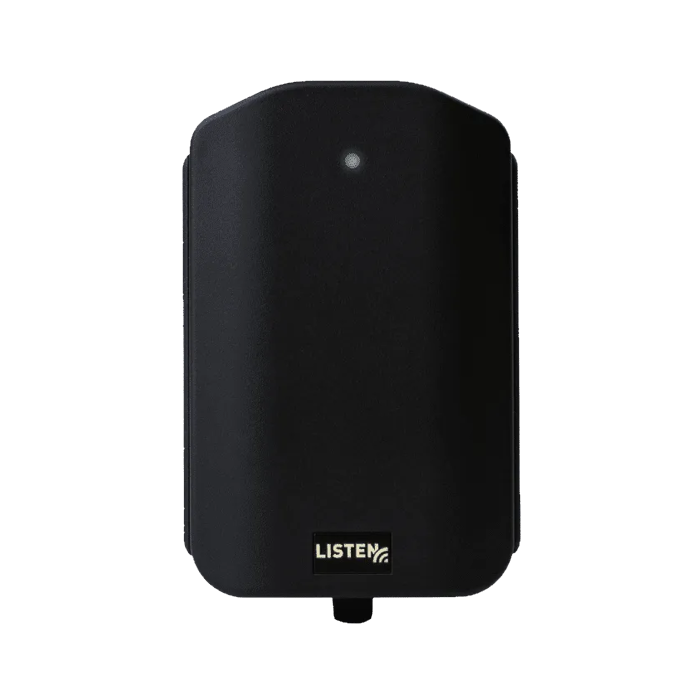

Listen Technologies LA-490 listen Bluetooth/IR beacon

General Description

The LA-490 is a compact and wireless wall mountable beacon that transmits Bluetooth and/or Infrared signals, enabling smartphones using the ListenWIFI app and LWR-1050 receivers to pinpoint user locations. The beacon can then trigger the device to automatically deliver the appropriate audio channel directly to listeners, eliminating manual selection or QR code scanning, making them essential for venues with multiple audio channels.

Features

Fully automates the user’s experience
Enables automatic channel selection on user devices
Supports both ListenWIFI mobile apps and LWR-1050 Wi-Fi Audio Receivers
Compact size and lightweight
Bluetooth and IR triggering in one device
Adjustable range and interval
Battery or USB powered (recommended on IR mode)
Easily mount on a wall or attach to an electrical box
Simple to program and install using ListenWIFI Manager software (Windows®)
Secure and tamper proof

Delivery Includes

1 LA-490 Bluetooth/IR Beacon
2 AA Alkaline Batteries
1 USB Power Supply
1 Mounting Hardware
1 Oversized Wall Plate
1 Quick Start Guide

Technical Data

Dimensions (H x W x D) with Mounting Plate 11.7 x 7.6 x 2.5 cm
Unit Dimensions (H x W x D) 11.4 x 7.1 x 2.3 cm
Unit Weight with batteries    143 g
Unit Weight 76 g
Shipping Weight 430 g
Enclosure/Mounting Materials PC plastic (IR transparent)
LED Multi-coloured, multi-function
Colour     Dark Grey, chrome logo
USB Connection USB-Micro for power and programming
Mounting Hardware    Mounts to wall or single gang electrical box (US and European), tamper proof hex screw
Oversized Wall Plate Fits standard US and European single gang electrical box
Battery Door    Removable for battery replacement
Bluetooth (BT) 5.0, Bluetooth Low Energy (BLE), for programming and audio triggering
Infrared (IR) Infrared light used for audio triggering
Protocols iBeacon, SyncLink
USB    2.0
Security PIN-protected for tamper-proof operation, restricted to authorized software only (OTA).
Bluetooth (BT) Low = 3 meters (10 ft.), Medium = 9 meters (30 ft.), High = 33 meters (110 ft.), line of sight. *
Infrared (IR)    Low = 3 meters (10 ft.), Medium = 9 meters (30 ft.), High = 33 meters (110 ft.), line of sight.*
*Beacon must be USB powered for High Power in IR mode. The range of the beacon will be dependent upon environmental conditions and listening device sensitivity, especially with Bluetooth (BT). It is essential to tailor your design approach based on specific requirements and environmental conditions. Multiple beacons can be used to extend the range or footprint of the beacon signals.
User Controls Bluetooth triggering, Bluetooth power, Infrared triggering, Infrared power, transmit interval, LED indicators, low battery LED, OTA configuration, trigger ID, UUID, firmware updates, reset to defaults
Setup/Programming    Programming via USB connection or Blueooth OTA connection with ListenWIFI Manager software. The ListenWIFI Manager provides central management of the entire ListenWiFI system, including Beacons.
LED Blue flash every 5 seconds indicates normal operation (can be disabled); Red flashing every 5 seconds indicates low battery (can be disabled); Green flash every second indicates active Bluetooth OTA connection with ListenWIFI Manager software; Alternating Amber/Red indicates beacon is performing a firmware upgrade
Power Supply USB-Micro - 5V, 500mA
Battery Type    Alkaline batteries, non-rechargeable, field replaceable
Battery Size    AA
Battery Life To be published*
*Dependent upon device configuration and batteries. Recommend powering via USB for Infrared mode.
Temperature – Operation -10 ºC to +40 ºC
Temperature – Storage -20 ºC to +50 ºC
Relative Humidity 0 to 95% relative humidity, non condensing
Regulatory Marks FCC, CE, ROHS, UKCA
