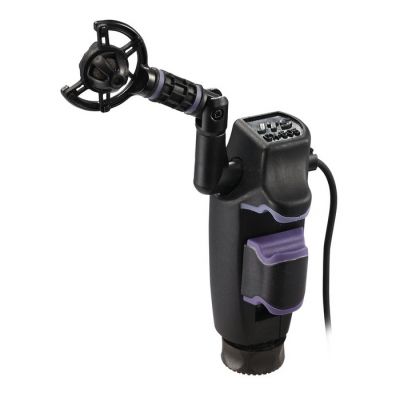

JTS CX-506 drum and percussion condenser instrument microphone

Special Price £77.04 £64.20 Regular Price £83.70

The JTS CX-506 drum and percussion condenser instrument microphone has an adjustable microphone shaft and protective shock mount clamp to ensure simple yet secure mounting on drum rims, percussion instruments, and cymbal stands in either a horizontal or vertical position.

Free shipping on all orders £150 and over

01686 628012

General Description

The JTS CX-506 is a versatile and low-profile drum and percussion condenser instrument microphone that features a frequency response specially designed for miking and reproducing drum and percussion instruments.

Low-noise electronic circuitry together with balanced output provides isolation from ambient noise, and the adjustable microphone shaft ensures the microphone aims at a precise pickup location.

The protective shock mount clamp greatly reduces extraneous mechanical noise and ensures simple secure mounting on drum rims, percussion instruments, and cymbal stands in either a horizontal or vertical position.

Features

Adjustable microphone shaft for precise pickup
Elastic grip protects damage to instruments
Low-noise electronics and balanced output
Versatile and simple clamp for horizontal or vertical mounting
Low-profile design for minimal interference with musician

Delivery Includes

1 CX-506 drum and percussion condenser instrument microphone

Technical Data

Type Electret Condenser
Frequency Response 60-18,000 Hz
Polar Pattern    Cardioid, rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity (at 1,000Hz) -70dB*(0.32mV)*0dB=1V/μbar
Output Impedance 400Ω
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector type XLR M
Case Metallic enamel-painted die cast metal body with hardened matte-finished steel grille
Net Weight 230g
Touch Noise Super low
Power Supply 9-52V phantom power or AA 1.5V battery

More Information
ManufacturerJTS
