JTS R-4 Quad channel diversity receiver

General Description

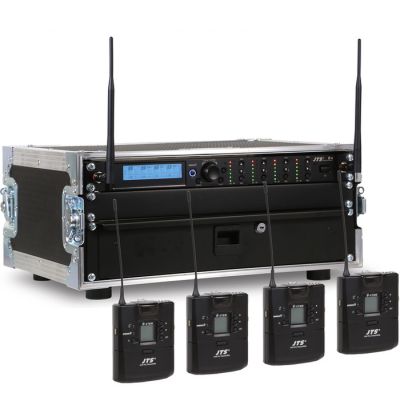

The JTS R-4 is a UHF PLL Quad channel diversity wireless receiver designed to fit into only 1U of standard 19” rack. This receiver features REMOSET which enables the transmitters and receiver to wirelessly sync frequencies in under a second with the push of a button.

The antenna outputs and AC can be cascaded to enable multiple receivers to be connected together. With integrated antenna distribution, this receiver saves you rack space, time and money.

This system is available in two frequency ranges-

823-865MHz includes in channel 70 and can be operated licence-free anywhere within Europe.

606.5-638MHz includes channel 38 which is the most reliable solution for portable wireless microphone systems. (Please Note. Channel 38 use requires a licence. For more information please contact us or visit Ofcom).

Features

REMOSET synchronisation
Pilot tone and noise mute
Integrated antenna distribution
4 independent XLR outputs
1 XLR for mixed output

Delivery Includes

1 R-4 diversity receiver

Technical Data

Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: UHF 823-865MHz / 606.5-638MHz
S / N Ratio: > 105dB
T.H.D:    <0.6% @ 1KHz
Display Contents: Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter (LED BAR), RF Meter (LED BAR), Battery Status
Controls: Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
Audio Output Level: -12dB
AF Output Impedance: 600Ω
Squelch: Pilot Tone & Noise Mute
Operation Voltage: 100 ~ 240V
Output Connector: 4 independent XLR outputs, and 1 Ø6.3mm and 1 XLR for mixed output
Dimension (WxHxD): 212.3 x 38.3 x 144mm
