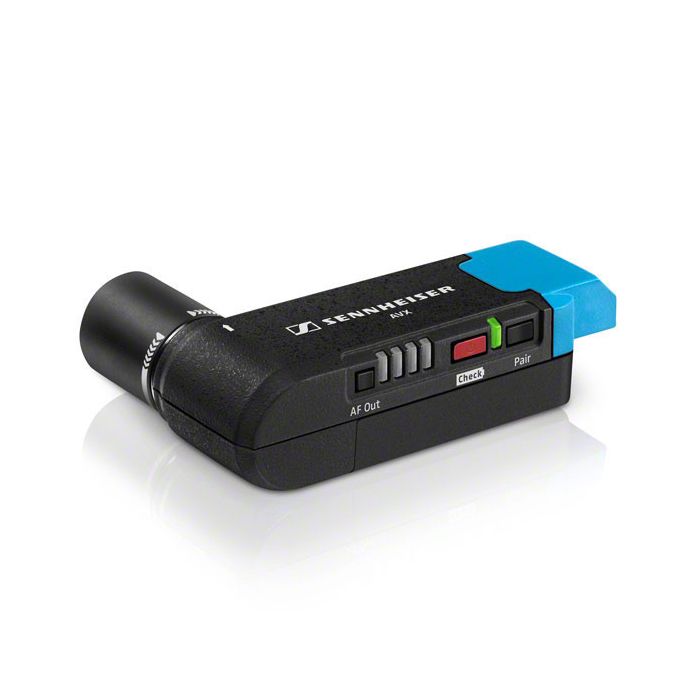

Sennheiser EKP AVX Compact plug-on receiver

General Description

The Sennheiser EKP AVX is a compact plug-on wireless receiver unit for use with Sennheiser AVX series transmitters. It features auto-frequency configuration for ease of setup, rotating housing to avoid collisions, and an incorporated 3-pin XLR male plug to directly insert into a video camera, recording device, or other XLR input.

When used with a professional video camera the EKP AVX unit has an auto-off feature can switch the unit off when the camera is turned off, and input sensitivity that can match the camera audio levels. The unit can also be connected to DSLR cameras using the included mini-jack adapter.

Features

Licence-free in Europe
Ultra compact digital receiver
Quick and easy setup
Plugs directly into XLR audio input
Switches on/off by P48 Phantom power
Optimized dynamic range
Auto frequency management
AES 256 encryption
Metal housing

Delivery Includes

1 EKP AVX plug-on receiver
1 Battery pack
1 Hot shoe mount
1 Beltclip
1 XLR to 3.5mm jack cable
1 USB charger and cable

Technical Data

Frequency response: 20 Hz - 20000 Hz
THD, total harmonic distortion: typ. 0.1 %
Weight: 87 g (including battery pack)
Audio output: XLR
Operating temperature: -10 °C - + 55°C
Signal-to-noise ratio: > 90 dB (A)
RF output power: adaptive up to 250mW (peak) country specific
Operating time: > 4h
Modulation: GFSK
Audio output level: -30 dBu - 0 dBu in 4 steps
Battery Specification: Li-Ion 3.7 V DC
Dynamic range: > 120 dB (A)
Frequency band: 1880 - 1930 MHz (country specific)
Sampling rates: 24 bit/ 48 kHz
Latency: 19 Ms
