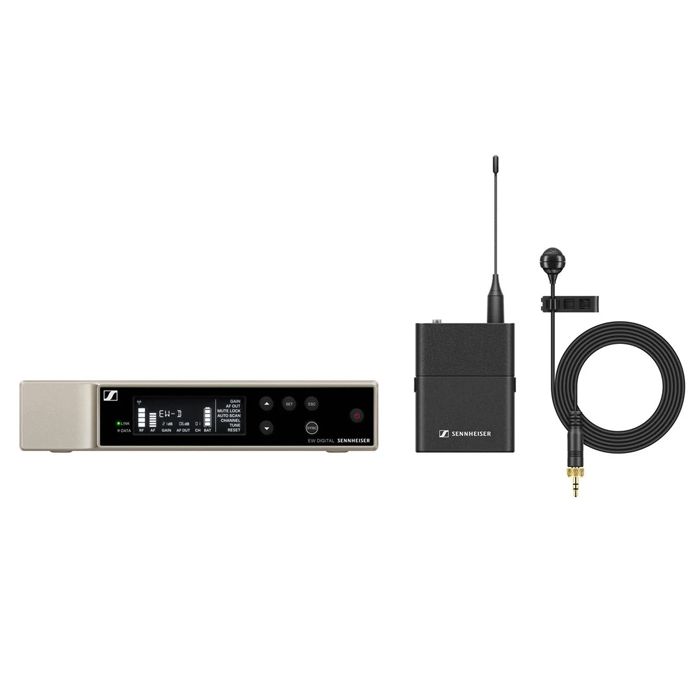

Sennheiser EW-D ME4 SET radio lapel microphone system

General Description

The Sennheiser EW-D ME4 SET is a complete digital UHF bodypack transmitter with ME4 lapel microphone and diversity receiver system. It incorporates the Sennheiser Smart Assist app which provides automated setup, operation and monitoring using any iOS or Android device.

Versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobtrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

The Sennheiser Evolution Wireless Digital is available in the following frequency ranges:

Q1-6 470.2 – 526 MHz
R1-6 520 – 576 MHz
R4-9 552 – 607.8 MHz
S1-7 606.2 – 662 MHz
S4-7 630 – 662 MHz
S7-10 662 – 693.8 MHz
U1/5 823.2 – 831.8 MHz & 863.2 – 864.8 MHz
V3-4 925.2 – 937.3 MHz
Y1-3 1785.2 – 1799.8 MHz

Only ranges S1-7 606.2 – 662 MHz and U1/5 823.2 – 831.8 MHz & 863.2 – 864.8 MHz are available to purchase through the website shop as these are most popular frequencies for the UK market. The other frequencies ranges are available by special request, please contact us for details.
Frequencies 863 – 865 MHz can be operated licence-free throughout the UK. Frequencies 604MHz – 614 MHz and 823 – 832 MHz can be operated on a UK shared licence available from Ofcom.

Features

Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
Auto scan creates reliable connections with minimal time and effort
134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning
Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Delivery Includes

1 EW-D EM rack receiver
1 EW-D SK bodypack transmitter
1 ME 4 lavalier microphone (cardioid)
2 rod antennas
1 power supply with country adapters
1 rackmount set
4 rubber feet
1 quick guide
1 safety guide
1 manufacturer declaration sheet

Technical Data

THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
Operating relative humidity: 5 - 95 % (non-condensing)
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
EW-D EM
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (without antennas and power supply)
Current consumption: ≤ 300 mA
Input voltage range: 11 - 13 V ⎓
Audio output level: 18 dBu max.
Transmission power: BLE: max. 10 mW EIRP
EW-D SK
Dimensions: 63 x 80 x 20 mm (without antenna)
Power supply: 2 AA batteries 1.5 V (alkaline manganese), or BA 70 rechargeable battery pack
Current consumption: < 300 mA
Input voltage range: 2.0 - 4.35 V
Transmission power: Audio link: 10 mW, ERP (Range Y1-3): 12 mW ERP, BLE: max. 10 mW EIRP
Weight: approx. 120 g
ME 4
Connector: 3.5 mm jack
Frequency response: 50 to 18,000 Hz
Max. sound pressure level: 120 dB
Cable length: approx. 1.60 m
Pick-up pattern: cardioid
Sensitivity in free field, no load (1kHz): 40 mV/Pa
Transducer principle: pre-polarized condenser microphone
Equivalent noise level: 31 dB
Power supply: 7.5 V
