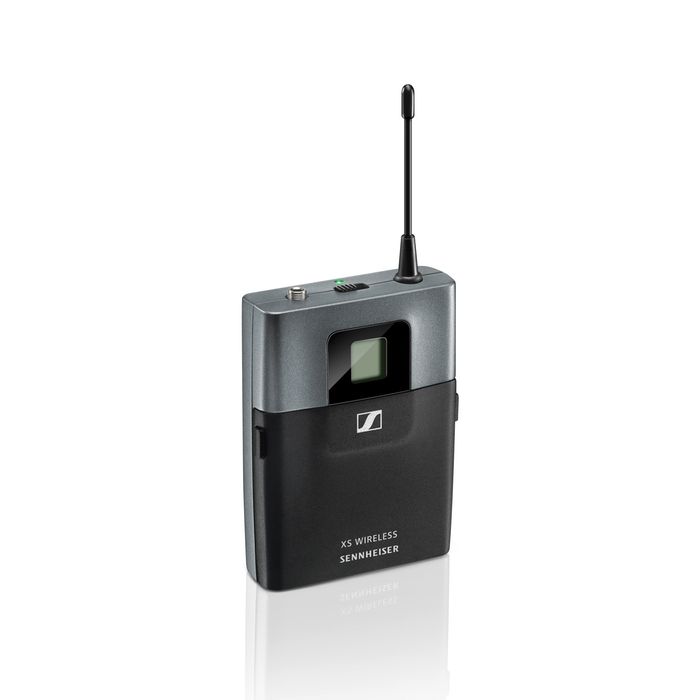

Sennheiser SK-XSW bodypack transmitter

General Description

The Sennheiser SK-XSW is a bodypack transmitter for use with the EM-XSW 1/2/DUAL receivers.

The bodypack transmitter features up to 10 compatible channels with quick and easy setup.

The Sennheiser SK-XSW is available in the following frequency ranges:

A: 548 to 572 MHz
GB: 606-630 MHz
B: 614 to 638 MHz
C: 766 to 790 MHz
D: 794 to 806 MHz
E: 821 to 832 MHz and 863 to 865 MHz
K: 925 to 937.5 MHz

Only Range GB (channel 38) and Range E (channel 70) systems are available for purchase on the on-line shop. The other frequency ranges are available by special request for fixed site licence applications. Channel GB includes Channel 38 which is the most reliable solution for portable wireless microphone systems. (Please Note. Channel 38 use requires a licence. For more information please contact us or visit www.ofcom.org.uk). Channel E includes Channel 70 which is for legal licence-free use in the UK and Europe.

Features

Compact bodypack transmitter
Quick and easy setup
LCD displaying channel and battery status
Selectable UHF frequencies within a large bandwidth
Microphone mute switch
Up to 10 compatible channels

Delivery Includes

1 Sennheiser SK-XSW Bodypack transmitter

Technical Data

Dimensions: approx. 71 x 96 x 28 mm
Weight: approx. 95g
Operating time: approx. 10 hrs
Power supply: 2 AA size batteries, 1.5 V
Housing: robust ABS
AF frequency response: 50 bis 16,000 Hz
Frequency response: 50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion: ≤ 0.9%
Signal-to-noise ratio: ≥ 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Modulation: wideband FM
Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Diversity reception: True Diversity
Frequency: 8 frequency banks, each with up to 12 factory-preset channels
Sensitivity: < 3 μV at 52 dB(A)rms S/N
Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)"
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 40 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
