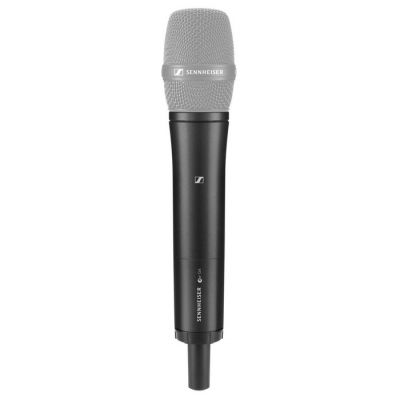

Sennheiser SKM 100 G4-S handheld transmitter

General Description

Sennheiser SKM 100 G4-S handheld transmitter for the evolution wireless microphone system.

Powerful handheld transmitter with a lightweight aluminium housing for evolution wireless G4 100 Series systems.

Evolution wireless has been the industry standard for flexibility, ease of use and reliability for wireless microphones for years and the new and improved G4 system looks to continue this trend.

The wireless Sennheiser G4 ew 100 range is available in the following frequency ranges:

Range A = 516 - 558 MHz
Range G = 566 - 608 MHz
Range GB = 606 - 648 MHz
Range B = 626 - 668 MHz
Range C = 734 - 776 MHz
Range E = 823 - 865 MHz
Range 1G8 = 1785 - 1800 MHz

Only Range GB (channel 38) and Range E (channel 70) systems are available for purchase on the online shop. The other frequency ranges are available by special request for fixed site licence applications. Range GB includes Channel 38 which is the most reliable solution for portable wireless microphone systems. (Please Note. Channel 38 use requires a licence. For more information please contact us or visit here). Range E includes Channel 70 which is for legal licence-free use in the UK and Europe.

The Sennheiser G4 range of wireless microphone systems are capable of operating simultaneously, intermodulation free, on six frequencies in the licence exempt 863-865 MHz (channel 70) band. These frequencies are;

863.100 MHz
863.400 MHz
863.750 MHz
864.225 MHz
864.550 MHz
864.975 MHz

Features

Aluminium handheld transmitter casing
Integrated microphone mute switch
42MHz bandwidth with 1680 selectable channels
Fast frequency allocation - Synchronise 12 intermodulation channels in seconds
Proven industry reliability
High RF output power (up to 30 mW)

Delivery Includes

SKM 100 G4-S
MZQ 1 microphone clamp
2 AA batteries
quick guide
safety guide
manufacturer declaration sheet

Technical Data

RF characteristics
Modulation
Wideband FM
Frequency ranges
A1: 470 - 516 MHz A: 516 - 558 MHz AS: 520 - 558 MHz G: 566 - 608 MHz GB: 606 - 648 MHz B: 626 - 668 MHz C: 734 - 776 MHz D: 780 - 822 MHz E: 823 - 865 MHz JB: 806 - 810 MHz K+: 925 - 937.5 MHz 1G8: 1785 - 1800 MHz
Transmission frequencies
Max. 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching bandwidth
up to 42 MHz
Nominal/peak deviation
±24 kHz / ±48 kHz
Frequency stability
≤ ±15 ppm
RF output power at 50 Ω
Max. 30 mW
Pilot tone squelch
Can be switched off
AF characteristics
Compander system
Sennheiser HDX
AF frequency response
80 - 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation)
≥ 110 dBA
Total harmonic distortion (THD)
≤ 0.9 %
Max. input voltage
3 V eff
Input impedance
40 kΩ
Input capacitance
Switchable
Setting range for input sensitivity
48 dB, adjustable in 6 dB steps
Overall device
Temperature range
-10 °C to +55 °C
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage
3 V battery / 2.4 V rechargeable battery
Current consumption
at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
Operating time
Typically 8 h
Dimensions
Approx. Ø 50 x 265 mm
Weight (incl. batteries)
approx. 450 g
