Sennheiser XSW-D Vocal Set

General Description

One-touch ease-of-use wireless audio set that utilises a digital transmission to seamlessly link audio sources. Equipped with an XS 1 microphone, this elegant solution makes wireless vocals easier than ever before while maintaining a reliable connection.

The new Sennheiser XS Wireless Digital system is a game changer. Why be restricted by a cable when you can use a simpler, smaller and smarter solution. With a transmitter and receiver barely larger than an audio connector and licence-free operation, wireless audio has never been easier.

The XSW-D Vocal Set is equipped with an XS 1 cardioid dynamic microphone making it ideal for speech or singing.

Features

• One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• 75m range (250ft) in optimal conditions
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one receiver
• Configure any combination of transmitters and receivers
Microphone with integrated mute switch.

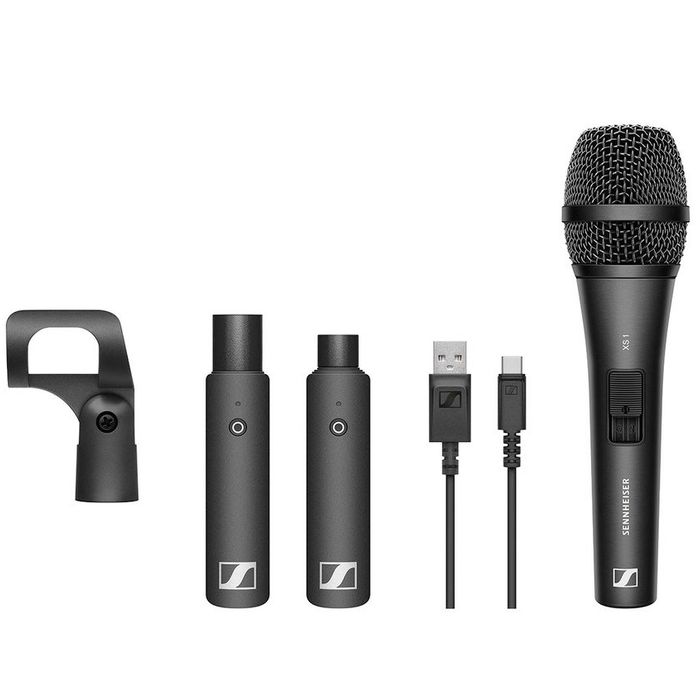

Delivery Includes

1 XSW-D XLR female transmitter
1 XSW-D XLR male receiver
1 XS 1 cardioid dynamic vocal microphone
1 Mic clip
1 USB-A to USB-C charging cable

Technical Data

Dimensions

XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
THD, total harmonic distortion: < 0.1 %
Charging time: typ. 3 h
Audio output: max. 12 dBu
Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
Signal-to-noise ratio: ≥ 106 dB
Operating time: up to 5 h
Modulation: GFSK with TDMA
Battery Specification: Li-Ion
Capacity: 850 mAh
Codecs: aptX® Live
Frequency range: 2,400 - 2,483.5MHz
Max. Input voltage: typ. 5.0 V
Transmission power: max. 10 mW
Voltage: 3.7 V
Operating relative humidity: 95 % (non-condensing)
Latency: < 4 ms
Temperature Range: 0 °C - 60 °C (32 °F - 140 °F)
Audio frequency response: 3.5 mm Jack/XLR: 80 - 18,000 Hz, 6.3 mm Jack: 10 - 18,000 Hz
