JTS PMM-4 personal monitoring mixer
This multi-purpose monitoring mixer is ideal as a primary or submixer for applications such as meeting rooms, courtrooms, restaurants, schools and colleges, places of worship and health clubs. It has two additional auxiliary inputs and four split outputs for daisy chain expanding capabilities.
Free shipping on all orders £150 and over
General Description

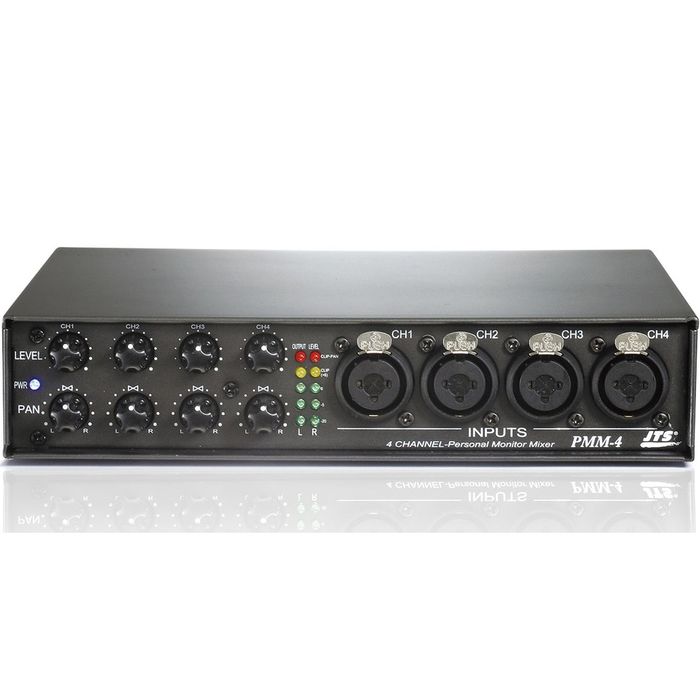

The JTS PMM-4 is stereo mixer with four combo XLR / 6.35mm Jack inputs that can be easily monitored and controlled. This multi-purpose mixer is ideal as a primary or submixer for applications such as meeting rooms, courtrooms, restaurants, schools and colleges, places of worship and health clubs. It has two additional auxiliary inputs and four split outputs for daisy chain expanding capabilities.
Features
Combo connector inputs XLR M / 6.35mm Jack
Pan and gain controls
Expanding capabilities
Delivery Includes
1 PMM-4 monitoring mixer
Technical Data
Frequency Response 22~22,000 Hz
Distortion <0.025%
Noise <-61dB
CMRR >70dB
Power Supply 12~18VDC, 600mA
Input Connector XLR M or 6.35mm Jack combo sockets x4
Input Impedance 5.9KΩ
AUX Input Connector 6.35mm phone jack (left / right channel)
AUX Input Impedance 18.2 KΩ (MONO: 9.1 KΩ)
Main Mix Output Connector 6.35mm jack (left / right channel)
Main Mix Output Impedance balanced: 1KΩ, unbalanced: 500Ω
Output level (Max) 6.5±0.3dB (INPUT CH1~4)
Split Output Connector XLR
Split Output Noise <-110dB
Dimensions 205 x 212 x 43.5mm
Net Weight 1.41kg
| Manufacturer | JTS |
|---|
