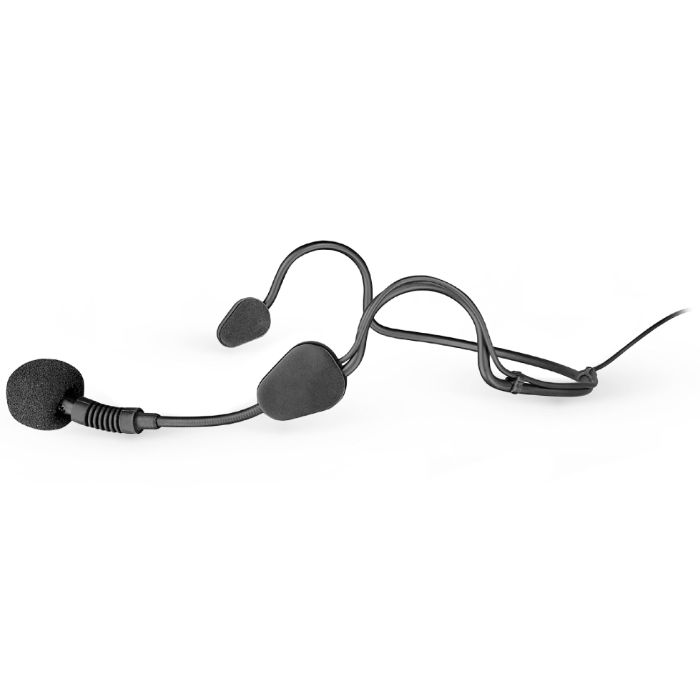

Televic UNITE TG H34 Neckworn Microphone

General Description

The TG H34 Unidirectional neckworn microphone is ideal for use with the Unite TP bodypack transmitter. This lightweight and discreet microphone is perfect for the tour guide when operating as a one-way system.

The lightweight frame ensures a secure and comfortable fit, and the gooseneck boom allows the microphone position to be adjusted, making it ideal for noisy environments.

Features

Supercardioid polar pattern
Lightweight, adjustable neckband
Flexible gooseneck for optimal positioning
Rugged “flexible” ear hooks

Delivery Includes

1 TG H34

Technical Data

Transducer type: Condenser
Operating principal: Pressure gradient
Polar pattern: Supercardioid
Frequency response:
• Close miking 20 - 13,000 Hz• Distant miking (measured at 1 m) 180 - 13,000 Hz
Open circuit voltage: 6.0 mV/Pa (-44.5 dBV)* ±3 dB
Nominal impedance: Approx. 700 Ω
Load impedance: > 3.5 kΩ
Max. SPL at 1 kHz: 119 dB*
Equivalent SPL: 31.5 dB SPL*
Power supply: Direct current 1.5 - 9 V
Max. power consumption: 780 μA
Connector: Mini-XLR, 4-pin, female
Dimensions: 15 mm x 95 mm
Weight: 36 g
