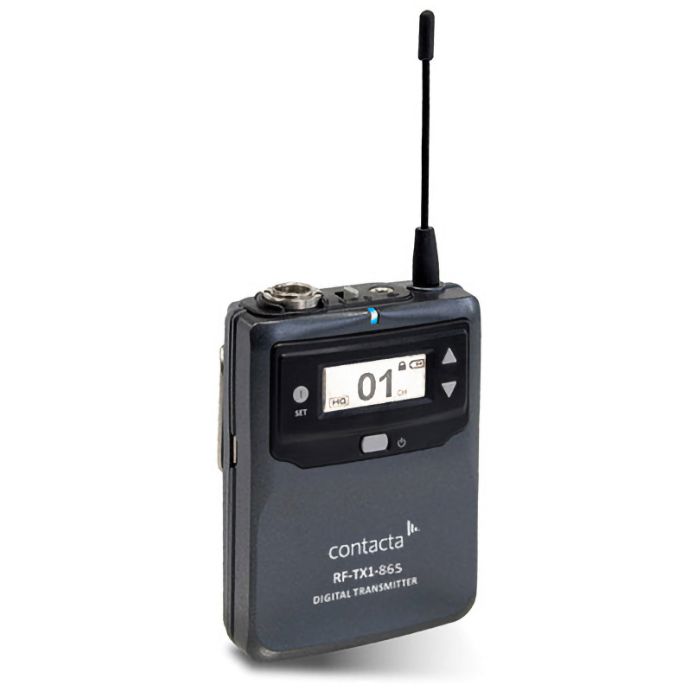

Contacta RF-TX1-865 Portable bodypack transmitter

General Description

The Contacta RF-TX1-865 compact portable digital radio frequency transmitter delivers wireless transmission of speech or music to compatible receivers. The transmitter features a socket to connect a lapel (supplied), ear-worn or head-worn microphone. These microphones give the presenter the freedom to speak, hands-free. The transmitter also has an aux-in socket to connect an external audio source. E.g. a smartphone.

The transmitter operates on two AA batteries and be recharged either by the
Micro-USB socket or docked in a compatible charger tray.

Ideal for Ideal for guided tours, language interpretation, silent conferencing and hearing support.

Features

Up to 50m transmission range (depending local conditions)
Back-lit screen displays channel, battery status and more.
Micro-USB socket and charging contacts.
Aux-in socket
Microphone talk/mute switch.
Channel lock.
Lanyard fixing and belt clip.

Delivery Includes

1 Portable Radio Frequency Transmitter [RF-TX1-865]
1 Lanyard [RF-LAN]
1 Micro-USB Power Cable [USB-M100]
1 Lapel Microphone [RF-TX1-LM]
2 AA 1.2V 2100mA rechargeable (NiMH) batteries

Technical Details

Dimensions:
Height – 88mm
Width – 64mm
Depth – 29mm
Weight 113.5g
Emission Modulation: 4GFSK
Latency: <4 ms@HQ
Antenna: Flexible antenna
Operating frequencies:
RF Output:
High : <10 mW
Low : 2~6mW
Mic Input: 3-pole Mini XLR
Audio Input: 3.5mm
Batteries: 2 x AA 1.2V 2100mA rechargeable (NiMH)
Battery Life: >8 hours
Operation Range: >50 meters
Frequency Response: 70Hz – 12kHz
Operating frequencies:
823-832MHz & 863-865MHz
Channels: 42
Display: White Backlit
Selectable Features: Auto-On / Auto-Lock
Software Smart programming software
