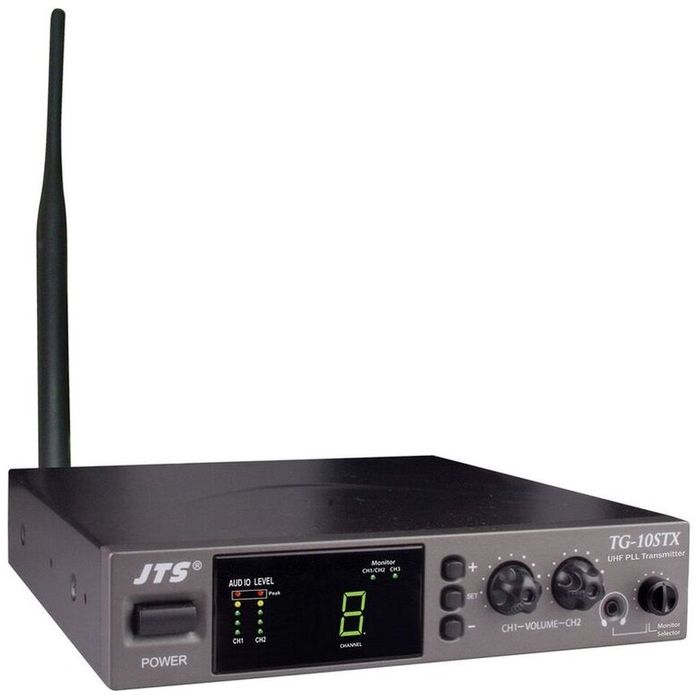

JTS TG-10STX Tour guide stationary transmitter (channel 38)

General Description

The JTS TG-10STX stationary transmitter is designed for fixed locations. It is ideal for multi-language applications .e.g. Simultaneous translation at conference venues, or at a visitor’s attraction with pre-recorded commentary from a CD player.

The coverage of the wireless system can be extended by using the optional antenna booster, directional antenna and antenna combiner (please contact us for details).

Up to 4 frequencies can be used simultaneously (depending on distance of transmitters and local RF conditions).

For more information please click here.

This system operates in channel 38 which is the most reliable solution for portable wireless microphone systems. (Please Note. Channel 38 use requires a licence. For more information please contact us or visit Ofcom)

Features

Rack mountable
LED display
Headphone output with volume control
Mic/Line level input
Selectable phantom power

Delivery Includes

1 JTS TG-10STX stationary transmitter

Technical Data

Channel 16 selectable channels
Carrier Frequency Range: Channel 38 606.5-614 Mhz
RF Output Power Hi / Low
Nominal Frequency Deviation (modulation) ±40KHz
Audio Input Impedance 20KΩ
Nominal Input Level -20 dBV
Maximal Input Level 0 dBV
LED Display     AF Level, Channel
Audio Input Connector 2 x Balanced XLR / Ø6.3mm Combo input Ø6.3mm monitor input
Output Monitor Connector 1 x Ø3.5mm phone Socket
Loop Out Connector 2 x Ø6.3mm Balanced Loop Out Socket
Operation Voltage 12-18 VDC, 450 mA
Dimension 212 x 44 x 239mm
