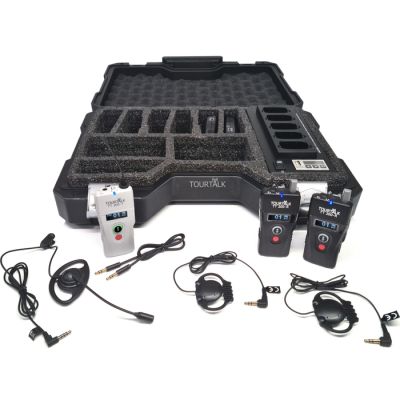

Tourtalk TT 200-TG5 system

General Description

The Tourtalk TT 200-TG5 is a complete digital two-way tour guide system comprising 5 transmitters with single ear headsets and a charger transport case.

A two-way tour guide system is a portable wireless audio system that is used to enable a tour group to be clearly heard in a noisy environment or over distance.

The Tourtalk TT 200 is a full-duplex tour guide system that allows group members to fully communicate with each other during a tour. The system allows the tour group to talk to and be heard by each other (as if on a telephone call); making it more convenient for visitor tours with question and answer sessions or interviews.

Each transmitter features an integrated microphone, headset socket (to connect the single ear headset) and microphone talk button. An aux-in socket to enable the connection of a smartphone is also provided.

Each person can then speak at a comfortable level without having to shout to each other and adjust their personal volume. They can even whisper if the tour is in a noise sensitive area e.g. Museum or gallery.

The transmitters are supplied complete with belt clips and lanyards for hands-free operation.

The charger transport case simultaneously recharges and stores up to 5 transmitters. Each charging dock has a battery status LED to indicate when the battery is fully charged. A control panel with LCD screen enables the channel of all docked units to be synced simultaneously within a few seconds, making it even easier and quicker to start a new tour.
The charger’s hard case provides protection during transit and storage and is small enough to be carried as hand luggage for international travel.

The Tourtalk tour guide system has been designed to be very user friendly and can be setup within minutes. As the system is completely wireless it can be operated indoors or outdoors and requires no installation.

The system can be used as one group or broken down into smaller groups simply by changing the channel on each transmitter.

This Tourtalk TT 200 tour guide system is ideal for guided tours, job/sports training, staff meetings and many more applications, even when social distancing.

A wide range of headsets and other accessories are available to suit any environment.

Custom packages can be supplied to suit any organisation’s requirements. Please contact us for details.

Features

Complete lightweight two-way tour guide system with charger transport case
Digital noise cancelling technology with full-duplex communication
No limit to the size of each group
Channel lock for reliability
Programmable backlit high contrast OLED display
All day battery life
Integrated microphone and headset socket
Illuminated talk button (latching or momentary PTT/PTM)
Adjustable microphone gain and RF power
Completely wireless so no installation is required
Aux-in socket with audio priority
Charger with back lit LCD control panel with channel sync
Power and charging status LEDs
Lightweight yet robust design
Software control for programming transmitters
Wide range of accessories available

Delivery Includes

5 TT 200-T transmitter
5 TT-SEH headset
5 TT-AI aux-in lead
5 TT-LA lanyard
10 TT-RB1 rechargeable battery
1 TT-C5SC charger transport case

Technical Data

TT 200-T Tour guide transmitter
Frequency range: 823-832MHz & 863-865MHz
Channels: 42
Groups: Up to 15
Transmission power: Hi 30mW Low 10mW
Transmission range: ≤ 150m (where local conditions allow)
Power supply: 2 x AA battery
Typical battery life: 18hrs/20hrs NiMh/Alkaline
Dimension: 46.5 x 33 x 96 mm (with belt clip but without antenna)
Weight: 113 g (with batteries)
TT-SEH Single ear headset
Impedance: 32 Ω
Cable: 1.04 m
Plug: 3.5 mm jack
Weight: 24g
TT-C5SC Charger transport case
Power requirements: AC 100-240v, 50/60Hz
Power supply: 12v DC (1.6A)
Charging docks: 5 transmitters/receivers
Charging time: Approx. 9 hours for a 2600 mAh battery (depending on battery status)
Dimensions: 420mm x 310mm x 111mm
Weight: 2.5kg

Features and specifications subject to change without notice
