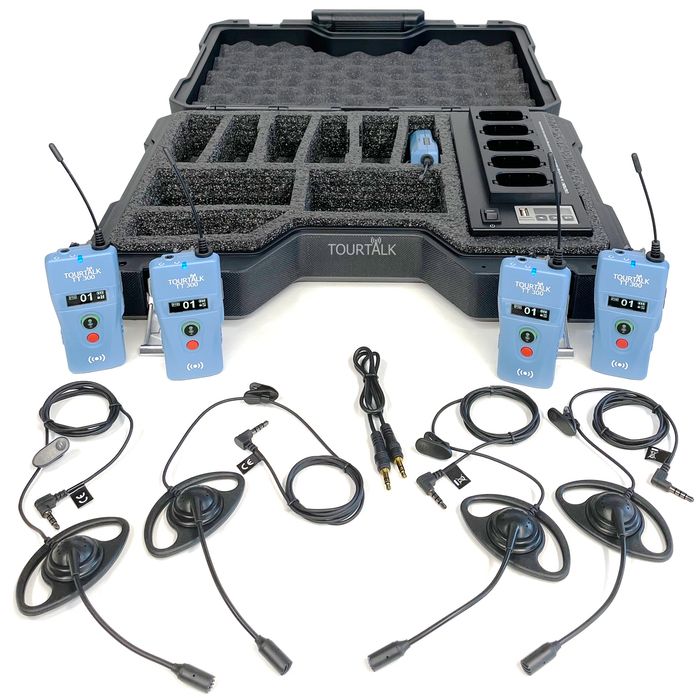

Tourtalk TT 300-CT5 system

General Description

The Tourtalk TT 300-CT5 is a complete digital two-way command training communication system comprising 5 transceivers with single ear headsets and a charger transport case.

A two-way command training system is a portable wireless audio system that is used to enable trainers to be clearly heard in a noisy environment or over distance.

Tourtalk TT 300 is a wireless full-duplex communication system that allows trainers and trainees to fully communicate with each other. The system allows anyone to talk to and be heard by each other; making it ideal for open discussion and question and answer sessions. The main trainer can interrupt (and disable the talking rights) of everybody else in the group at any time, to maintain control of the proceedings.

Each person can speak at a comfortable level without having to shout to each other and adjust their personal volume. They can even whisper if the training is in a noise sensitive area such as a public space. All users can talk simultaneously, as if on the same telephone call.

The transceivers are supplied complete with belt clips and lanyards for hands-free operation.

The charger transport case simultaneously recharges and stores up to 5 transceivers. Each charging dock has a battery status LED to indicate when the battery is fully charged. A control panel with LCD screen enables the channel of all docked units to be synced simultaneously within a few seconds, making it even easier and quicker to start a new group.
The charger’s hard case provides protection during transit and storage and is small enough to be carried as hand luggage for international travel.

The Tourtalk system has been designed to be very user friendly and can be setup within minutes. As the system is completely wireless it can be operated indoors or outdoors and requires no installation.

The system can be used as one group or broken down into smaller groups simply by changing the channel on each transceiver.

This Tourtalk TT 300 command training system is ideal for sports or on-the-job training, staff meetings, communication in commercial, industrial or retail sites and many more applications, even when social distancing.

A wide range of headsets and other accessories are available to suit any environment.

Custom packages can be supplied to suit any organisation’s requirements. Please contact us for details.

Features

Complete lightweight two-way command training system with charger transport case
Digital noise cancelling technology with full-duplex communication
No limit to the size of each group
Channel lock for reliability
Selectable encryption for private and secure discussions
All day battery life
Illuminated talk button (latching or momentary PTT/PTM)
Adjustable microphone gain and RF power
Completely wireless so no installation is required
Aux-in socket with audio priority
Charger with back lit LCD control panel with channel sync
Power and charging status LEDs
Lightweight yet robust design
Hearing Aid Compatible (HAC)
Wide range of accessories available

Delivery Includes

5 TT 300 transceiver
5 TT-SEH headset
5 TT-AI aux-in lead
5 TT-LA lanyard
10 TT-RB1 rechargeable battery
1 TT-C5SC charger transport case

Technical Data

TT 300 transceiver
Total channels: 42
Frequency range: 823-832MHz
Channels: 35
Live headsets per channel: Up to 3
Frequency range: 863-865MHz
Channels: 7
Live headsets per channel: Up to 6 with optional encryption
Transmission power: Hi 20mW Low 10mW
Transmission range: ≤ 100m (where local conditions allow)
Power supply: 2 x AA battery
Typical battery life: 21hrs
Dimensions: 46.5 x 33 x 96 mm (with belt clip but without antenna)
Weight: 99g (with batteries)
Operating temperature 0°C – +40 °C
TT-SEH Single ear headset
Impedance: 32 Ω
Cable: 1.04 m
Plug: 3.5 mm jack
Weight: 24g
TT-C5SC Charger transport case
Power requirements: AC 100-240v, 50/60Hz
Power supply: 12v DC (1.6A)
Charging docks: 5 transceivers
Charging time: Approx. 9 hours for a 2600 mAh battery (depending on battery status)
Dimensions: 420mm x 310mm x 111mm
Weight: 2.5kg

Features and specifications subject to change without notice
