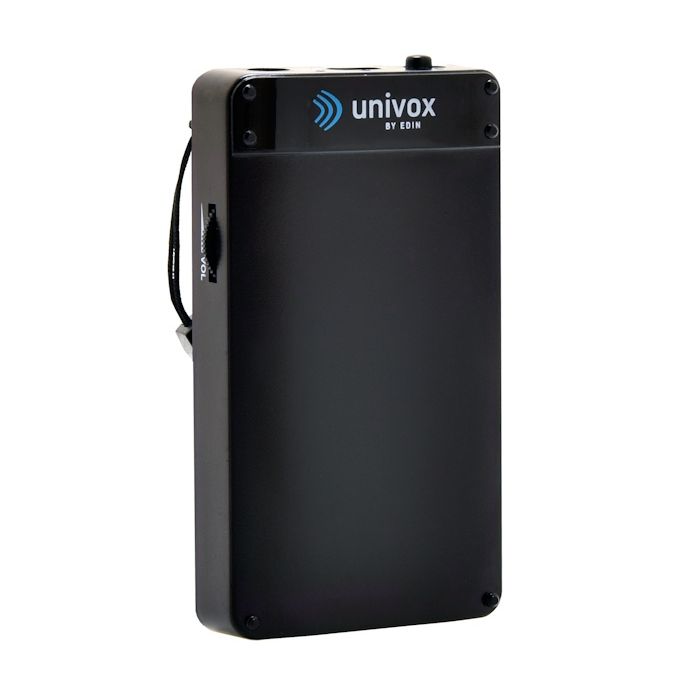

Univox IRR-1 infrared receiver

General Description

The Univox IRR-1 is a wireless 2-channel infrared pendant receiver designed for professional applications.

Equipped with IR transparent case and multiple internal receiving diodes for increased sensitivity. The receiver works with transmitters (also known as radiators or emitters) operating on the popular 2.3 and 2.8MHz bandwidth.

The unit is very easy to operate. Simply select the channel frequency and adjust the volume with the intuitive slide volume control. A squelch switch can automatically mute the audio if no IR signal is present.

Powered by a rechargeable Lithium Polymer battery, this lightweight receiver is to be worn around the neck, pendant-style (with the supplied lanyard) or clipped on a pocket. Charging is via micro-USB.

A standard 3.5mm socket is used to connect a neck loop to supplement personal hearing aids with a telecoil /T-switch setting or earphones/headphones. The socket incorporates the On/Off switch.

Features

IR transparent case for increased sensitivity
Li-Polymer battery for quick charging and lightweight
Up to 8hrs operation with 4hr charge time
Selectable 2.3 and 2.8 MHz carrier frequencies
2 Mono channels or 1 stereo
Unit automatically turns on when 3.5 mm jack is inserted
USB charging port
Lanyard and pocket spring clip on rear
Slide volume and channel selection for simple operation
Range of accessories available

Delivery Includes

1 IRR-1 pendant infrared receiver
1 lanyard
1 micro usb charging cable

Technical Data

Modulation FM, 1kHz ±75kHz
IR Light Wavelength 850nm
Carrier Frequency 2.3MHz, 2.8MHz  or Stereo: 2.3MHz (Left) and 2.8MHz (Right)
Total Harmonic Distortion <1%
Signal-to-noise Ratio <55dB
Battery 3.7V Lithium Polymer 500mAh
Operation time Approx. 8 hours
Charging time <4 hours
Power Connection USB (micro-USB to USB)
Indicators Green LED: power on    Red LED: charging
Output 3.5mm
Weight 58g incl battery
Gross weight 80g
Size (W) 45 x (D) 12 x (H) 82mm
Colour Black
