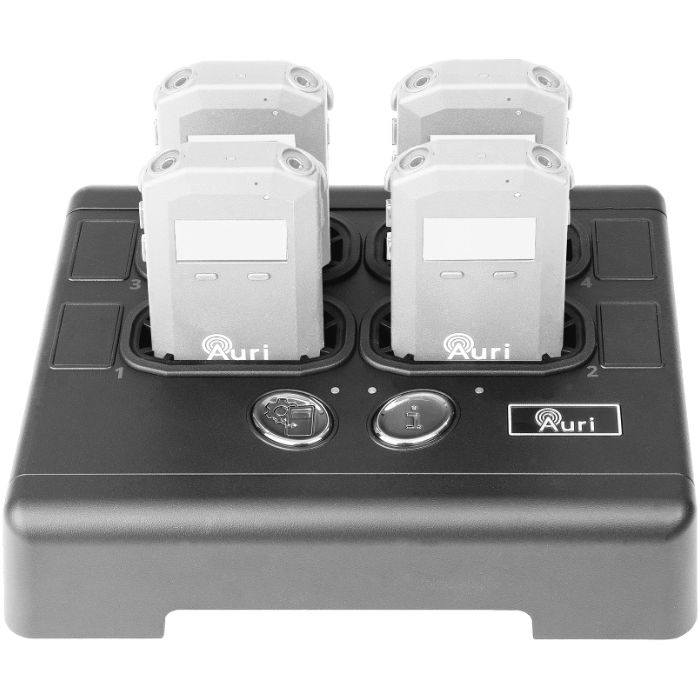

Auri D4 4-unit docking station



The Auri-D4 charger docking station offers network capability and can store AURI-RX1 receiver configurations, enabling centralised management, programming, and configuration.



The four charging slots feature tension locking ability to ensure proper charging contact and security. The charging tray can be wall mounted or simply placed on a desktop for easy dispensing.

Auri Manager software is required to discover and configure the Auri Transmitters, docks and docked receivers over the network. This can be downloaded from the Microsoft Store, just search for “Auri Manager” or use this link https://www.microsoft.com/store/productId/9NRJLR0V9QXH





Compact drop-in charger

Network capability

Receiver configuration storage

Centralised programming & configuration

Status Button – to illuminate receiver displays show status information

Copy Button – to copy the broadcast names, encryption keys and receiver settings





1 AURI-D4 Auri Docking Station

1 LA-210 Power Supply

1 Quick Start Guide

1 Safety Data Sheet





LED States

State Meaning

Off OK

Flashing Red and Amber then flash Amber Boot sequence

Flashing between Amber and Red Firmware update in progress

Slow Flash Amber (1s) Identify

Medium Flash Amber (0.25 – 0.5s) Updating

Fast Flash Amber (0.1s) System warning – check status in Auri Manager and power cycle Docking Station

Solid Amber System error – check status in Auri Manager, power cycle Docking Station or contact support

Slow Flash Red (while holding left button) Ready to transfer broadcast library

Fast Flash Red (while holding left button) Ready to transfer broadcast library and Receiver settings

Red, Off, Amber, Off Critical error

Technical Specifications

Network

Port speed 100 Mbit

IP address DHCP, static or link-local

Protocols mDNS, UDP (unicast)

Security UDP communication AES256-GCM

Controls and Indication

Buttons Copy and Status buttons

Recessed restart and factory reset buttons

Setup/Programming Via Auri Manager Software over network

LEDs Copy LED (red) and Status LED (amber), see handbook for states

Power

Power Supply Input 100-240 VAC, 50-60 Hz

Power Supply Output 12 VDC, 4.0 A, 48 W

Power Supply Connector 5.5 mm (.22 in.) OD x 2.3 mm (.09 in.) ID, barrel type

Power Cable 1.8 m (72 in.) Input Power Cable, 1.1 m (43 in.) Output Cable

Physical

Dimensions AURI-D4 – 50 x 192 x 150 mm

Unit Capacity 4

Weight AURI-D4 – 0.65 kg

Shipping Weight AURI-D4 – 1.56 kg

Colour Black with chrome buttons

Mounting Place on flat surface or use wall mounting slots

Environmental

Temperature – Storage -40 °C (-40 °F) to 70 °C (+158 °F)

Temperature – Operation -10 °C (14 °F) to 40 °C (+104 °F)

Relative Humidity 0 to 95% relative humidity, non-condensing

IP Rating IP20

Compliance

Standards CE, UKCA, RCM, REACH, WEEE



Specifications are subject to change without notice
