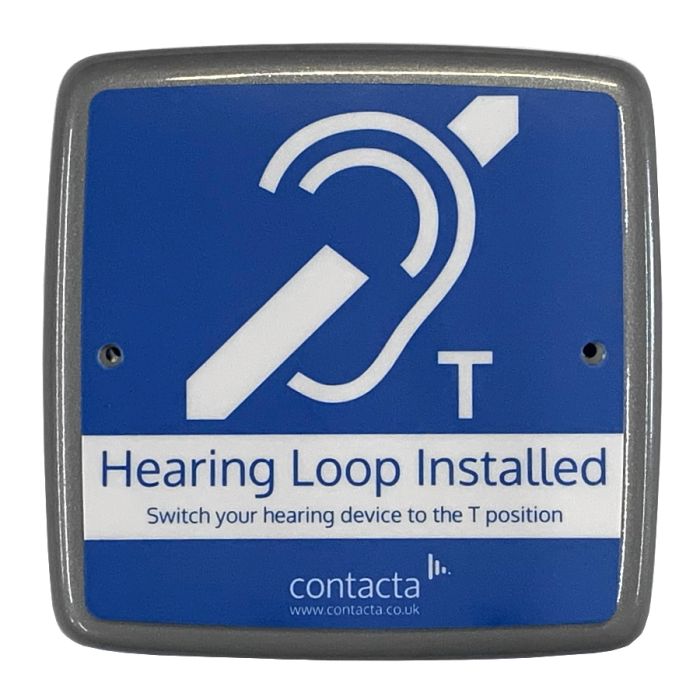

Contacta IL-EL42-PB Hearing Loop for Door Entry Systems

General Description

The Contacta IL-EL42-PB hearing loop is designed to be used for a connection to door entry or intercom systems to assist hearing device wearers.

This module will accept input signals from:
Pre-recorded sound sources (line out
signals)
Low voltage loudspeaker outputs
VOIP (voice over internet protocol)
audio adapters
Intercom systems
PA systems

Features

AGC (Automatic Gain Control)
Constant-current loop drive
Ohmically isolated audio line input
LED status indication – internal indicators display
drive and loop fault conditions
Low power consumption
IP55 rated

Delivery Includes

1 IL-EL42-PB Hearing Loop

Technical Data

Dimensions H x W x D: 128mm x 128mm x 45mm
Weight: 231g
Construction: Acrylic Capped ABS
Finish: Faux Metallic Sheen
Loop Drive Compliance: Constant current, bounded by 4V RMS & 2A RMS
Inputs: 3.5mm TRS audio jack, Screw terminals on 2.54mm Euro-block
Loop Output: Screw terminals on 5mm 2-way Euro-block
Power: 14V DC 2.14A via 2.1mm (from CA-10-02 or host
system)
