Sennheiser SZI 1029-W 5-Watt radiator in white finish

Contact us for price

The SZI 1029-W is a 5-Watt white radiator with a coverage area of up to 800 m².

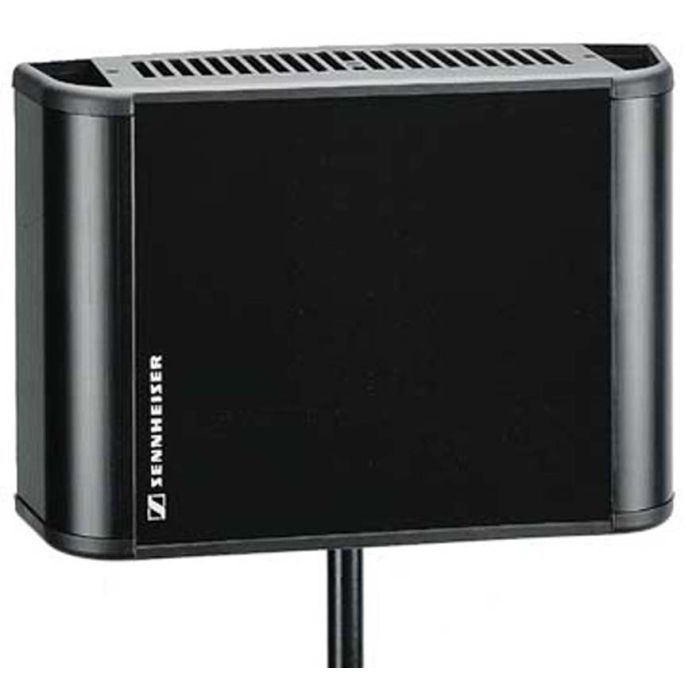

N.B. Model shown is SZI 1029-UK (Black) and not SZI 1029-W (white)

Free shipping on all orders £150 and over

01686 628012

General Description
The SZI 1029-W is a 5-W high-power white radiator for use with all wideband and narrow-band modulators. The radiator is automatically switched on by the RF carrier and can cover areas of up to 800 m² in single-channel operation. High-quality GaAlAs transmitting diodes have been arranged in 12 independent groups to ensure reliable transmission. A malfunction indicator is triggered when the radiating power is reduced by more than 30 %.

High-power radiator with a maximum coverage area of 800 m²
RF output for connecting additional radiators
Automatic on/off function
Versatile installation due to 5/8”, 3/8” and 1/2” threads
Excellent reliability due to 12 independent groups of transmitting diodes and malfunction indicator

Technical Data
IR Diodes 132 GaAlAs
Effective radiated power 5 W
Operating voltage (mains) 90-260 V, 50- 60 Hz
RF input BNC
Impedance 50 KOhm
Max. coverage area 800 m²
Threshold for automatic on/off function 50 mV ( HF- Signal)
RF output BNC
Weight 2,1 kg
Current consumption 350 mA / Stand-by 50 mA
Colour White

Delivery Includes
1 SZI 1029-W (White)
1 IEC UK mains cable
