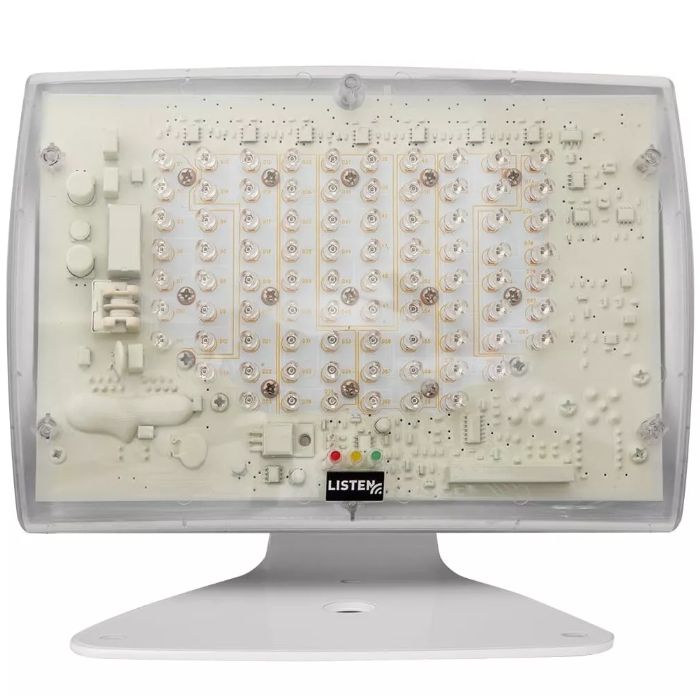

Listen Technologies LA-140 stationary infrared radiator

General Description

The LA-140 Infrared radiator/emitter packs high infrared power in a compact and attractive design. This unit is designed for easy installation and is supplied complete with wall, ceiling, desktop, mic stand and tripod mounting brackets. The LA-140 is powered via CAT-5 cabling while the RF modulated carriers are delivered via standard coax cable.

Power can be supplied by the LT-82 transmitter or from a separate LA-205 power supply (not supplied). Built-in delay compensation prevents signal cancellation (multi-path) problems and eliminates the piled-up cabling that is required with other systems. The LA-140 is used for assistive listening, audio description or language interpretation.

Features

Includes mounting hardware
Available in grey or white
Auto shut off after 30 minutes without signal
Delay compensation ensures no signal drop out

Delivery Includes

1 LR-140 stationary infrared receiver
1 mounting kit
7.6 metres of coaxial cable
7.6 metres of CAT-5 cable

Technical Data

Frequency Range: 1 MHz - 5 MHz
Input: BNC Connection -25 dBm to -5 dBm input nominal
Output: BNC Connection -15 dBu nominal
Coverage Area Up to 929 m²
User Controls: Termination Switch, Delay Compensation Switch, Indicator LEDs on/off, Compatibility Switch
Red LED: Indicates power is present.
Yellow LED: Indicates no connection to transmitter or radiator.
Green LED: Indicates carrier and power are present and radiator is emitting IR signal
Input: RJ-45 connector. 30 VDC, powered from transmitter via CAT-5
Output: RJ-45 connector. 30 VDC, powers up to one additional radiator (Maximum two radiators powered from each LT-82 transmitter or LA-205 power supply)
Number of Emitting Diodes    : 84
Emitter Power: 3W
Temperature Operation: -10 °C to 40 °C
Temperature Storage: -20 °C to 50 °C
Humidity: 0 to 95% relative humidity, non-condensing
Colour: LA-140-GY (Grey) LA-140-WH (White)
Unit Weight: 0.95 kg
Unit Weight with Wall/ Ceiling Mounting hardware: 1.09 kg
Dimensions: (H x W x D) 140 x 203 x 66 mm
