JTS RU-8012DB/RU-G3TH/RU-G3TB+CM-501 dual channel radio microphone system

General Description

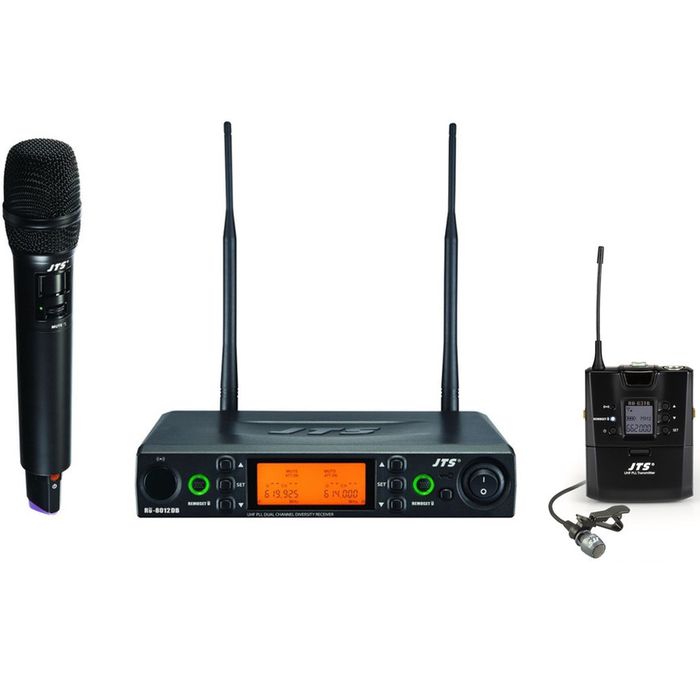

The JTS RU-8012DB/RU-G3TH/RU-G3TB+CM-501 dual channel radio microphone system comprises a RU-8012DB UHF PLL dual channel diversity receiver, a RU-G3TH handheld transmitter and a RU-G3TB bodypack transmitter with CM-501 lapel microphones. This system features REMOSET U which enables the transmitter and receiver to wirelessly sync frequencies in under a second.

This system is available in two frequency ranges-

823-865MHz includes in channel 70 and can be operated licence-free anywhere within Europe.

606.5-642MHz includes channel 38 which is the most reliable solution for portable wireless microphone systems. (Please Note. Channel 38 use requires a licence. For more information, please contact us or visit Ofcom).

Features

Dual channel operation
REMOSET U synchronisation
Pilot tone and noise mute
Frequency scan
Gain adjust on transmitters
Supplied with handheld and lapel microphone
Key lock to prevent tampering during an event

Delivery Includes

1 JTS RU-8012DB dual channel diversity receiver
1 JTS RU-G3TH handheld microphone transmitter
1 JTS RU-G3TB bodypack transmitter
1 JTS CM-501 lapel microphone

Technical Data

RU-8012DB dual channel diversity receiver
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 823-865MHz / 606.5-642MHz
Frequency Setting: REMOSET U
Receiving Mode: Antenna Diversity
S/N Ratio: >105dB(A)
T.H.D: <0.6%@1KHz
Sensitivity: -95dBm,S/N>80dB
Rejection Ratio: >80 dB
Frequency Response: 50Hz~16KHz±2dB
Antenna Type: BNC Socket
Antenna Booster Power: DC12~15V/100mA
Display: LCD
Display Contents: Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
Controls: Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuation (XLR), Frequency Scan(ON/OFF)
Audio Output Level: Ref/ ±22.5KHz Dev@1KHz Tone ψ6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
Audio Output Impedance: 600Ω
Squelch: Pilot Tone & Noise Mute
Output Connector: 2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply: DC12~15V/300mA
Dimensions (WxHxD): 212.3 x 38.3 x 144mm
RU-G3TH handheld microphone
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 823-865MHz / 606.5-642MHz
Frequency Setting: REMOSET U
RF Output: Low / High
Stability: <±10KHz@Fc
Frequency Deviation: ±48KHz
Spurious Emissions: <-50dBc
Function: Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode
Display: LCD+LED
Battery UM3: AA x2
Dimensions: 50(W) x 253(H) x 35.5(D)
RU-G3TB bodypack transmitter
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 823-865MHz / 606.5-642MHz
Frequency Setting: REMOSET U
RF Output: Low / High
Stability: <±10KHz@Fc
Frequency Deviation: ±48KHz
Spurious Emissions: <-50dBc
Function: Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display: LCD + LED
Input Connector: 4P Mini XR
Controls: Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery : UM3, AA x2
CM-501 lapel microphone
Connector type 4-Pin Mini XLR
Frequency Response: 100~15,000 Hz
Polar Pattern: Cardioid
Sensitivity (at 1 KHz): -60±3 dB* (1mV)*0dB=1V/μbar
Impedance: 2.2kΩ
Max. SPL for 1% THD: 130dB
Dimensions: Ø10.1mm x 26.4mm
Weight: 21.5g
