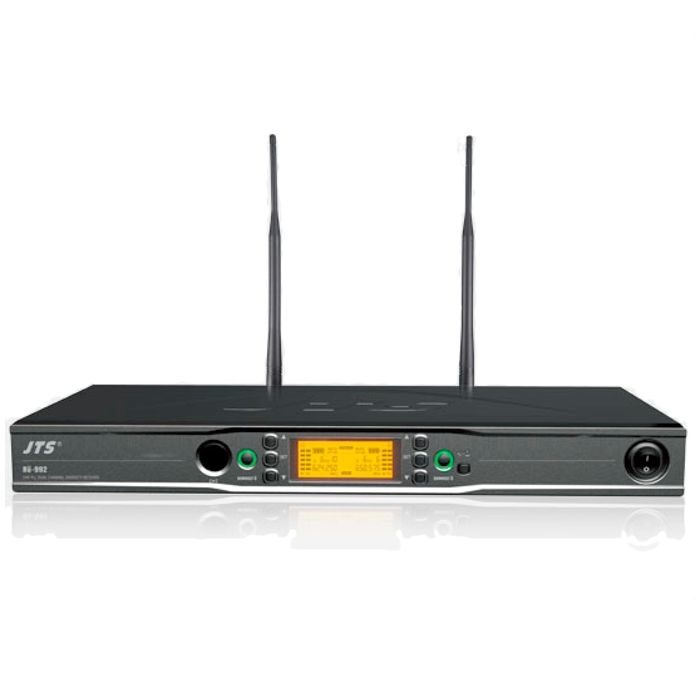

JTS RU-992 dual channel receiver (channel 38)

General Description

The JTS RU-992 is a UHF PLL dual channel diversity wireless receiver featuring REMOSET U which enables the receiver to wirelessly sync frequencies with a compatible transmitter in under a second. Other features include Pilot tone and Noise mute, two independent balanced and unbalanced outputs, frequency scan function and LCD display.

This system transmits in channel 38 which is the most reliable solution for portable wireless microphone systems. (Please Note. Channel 38 use requires a licence. For more information please contact us or visit (https://www.ofcom.org.uk/manage-your-licence/radiocommunication-licences/pmse).

Features

REMOSET U synchronisation
Dual channel operation
Pilot tone and noise mute
Frequency scan
Two independent balanced and unbalanced outputs
LCD displaying group, channel, frequency and battery status

Delivery Includes

1 RU-992 dual channel receiver

Technical Data

Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 606.5 - 638 MHz
Frequency Setting: Ultrasonic / REMOSET (Transmit)
Receiving Mode: Antenna Diversity
S/N Ratio: >105dB(A)
T.H.D: <0.6%@1KHz
Sensitivity: -95dBm,S/N>80dB
Rejection Ratio: >80 dB
Frequency Response: 50Hz~16KHz±2dB
Antenna Type: BNC Socket
Antenna Booster Power: DC12~15V/100mA
Display: LCD
Display Contents: Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
Controls: Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output, Attenuation(XLR), Frequency Scan(ON/OFF)
Audio Output Level: Ref/ ±22.5KHz Dev@1KHz Tone, ψ6.3 Phone Jack/ -10dBV, XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
Audio Output Impedance: 600Ω
Squelch: Pilot Tone & Noise Mute
Output Connector: 2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply: DC12~15V/300mA
Dimension (mm): 420mm(W)* 44mm(H)* 211mm(D)
Notes: Actual product specifications may vary depending on region
