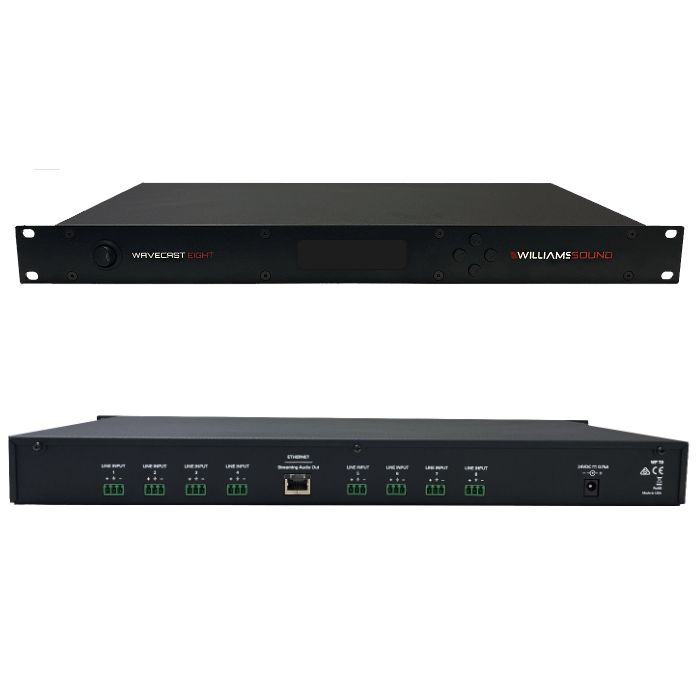

Williams AV WF T8 WaveCAST EIGHT

General Description

The Williams AV WF T8 WaveCAST EIGHT is a multi-channel audio over Wi-Fi platform designed for larger assistive listening applications or for streaming audio at venues where multiple sources of audio exist. e.g. Bars, Gyms, Airport lounges, etc.

Wi-Fi assistive listening is designed for both small and large group listening scenarios. It allows you to stream audio seamlessly to your own personal iOS or Android device or stream audio to a Williams AV dedicated receiver using Wi-Fi.

WaveCAST offers a DSP-based system architecture with an intuitive user interface and easy setup. Featuring ultra-low latency, hearing assistance can be optimized for hearing loss, music can be optimized for high-fidelity playback, and voice can be set for maximum speech intelligibility.

Up to 8 channels are available on a single WaveCAST EIGHT, and up to 8 WaveCAST EIGHTs can be used on one network.

The new WaveCAST app provides an easy-to-use, intuitive user interface and is available on iOS or Android. Listeners easily select channel and volume level once their personal device is connected to the Wi-Fi network.

*Note: Firmware is model specific. Firmware updates are currently unable to be completed on Mac computers.

Features

8 Channels
Rack mountable
Audio seamlessly streams over Wi-Fi
BYOD (Bring Your Own Device)
Free WaveCAST iOS and Android app
Dedicated receiver available for users that don’t have a phone
DSP-based system for maximum intelligibility
Supports multicast network configurations

Delivery Includes

1 WF T8 WaveCAST EIGHT

Technical Details

Dimensions:    43.18 cm x 19.37 cm x 4.4 cm
Weight:    2.27 kg
Colour:    Black
Rack Mount:    Standard 19” Rack, one EIA rack space high, one rack space wide
Power Supply:    Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID centre positive barrel connector
Power Switch:    Rocker; backlit red LED indicates power on
Temperature Range    Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C)
Audio Processor Functions:    DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control
Frequency Response:    31 – 16000 Hz, ±3 dB (“Music” Audio Preset)
Signal-to-Noise Ratio:    Greater than or equal to 69 dB (streaming to iPhone)
Total Harmonic Distortion:    Less than 0.25% @ 1 kHz
Common Mode Rejection:    Greater than 52 dB @ 1 kHz
Audio Inputs:    8 Phoenix-style Line Level Analouge Audio, Balanced or Unbalanced: Line Level
Audio Input Gain Adjust:    In menu, adjustable to +6 to -60 dB, in 1dB steps
Etherne:t    RJ-45 on the back of the unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant.
Approvals:    FCC, RoHS3, WEEE, Industry Canada, CE, PSE, RCM, CB Scheme
