Televic Unite CC Cockpit Case

Contact us for price

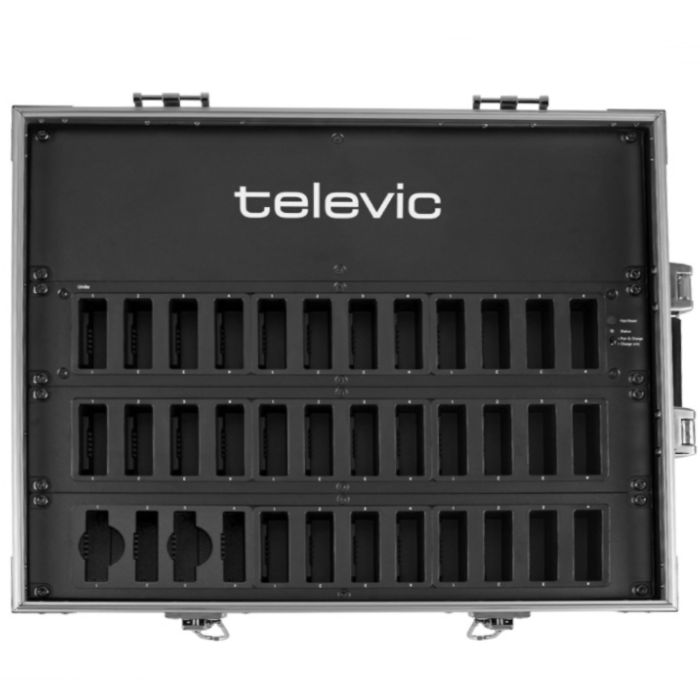

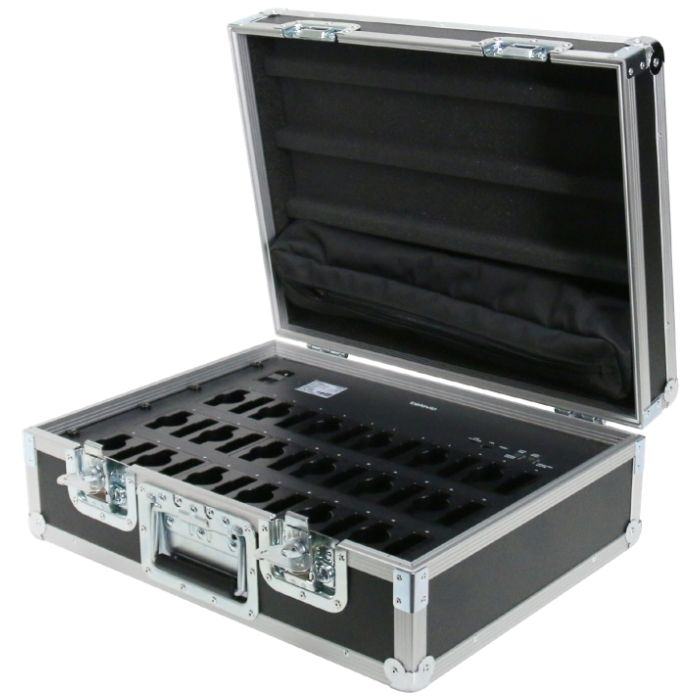

The Televic Unite CC Cockpit Case is a transport charger case that has 36 slots to charge Unite bodypack transmitters/receivers (including 18 that can also charge handheld transmitters). The case can be integrated into a network with other Unite components via the Ethernet port and is fitted into a protective outer case with removable lid.

https://www.tourguidesystem.co.uk/tourguide/televic-tour-guide-system

Free shipping on all orders £150 and over

01686 628012

General Description

The Televic Unite CC Cockpit Case is a transport charger case that has 36 slots to charge Unite bodypack transmitters/receivers (including 18 that can also charge handheld transmitters). The case can be integrated into a network with other Unite components via the Ethernet port and is fitted into a protective outer case with removable lid.

The integrated network connections allow you to connect the charging case to the Unite Manager software, enabling you to configure all devices in advance. This configuration is stored not only in the connected devices but also within the charging case itself. Pairing additional devices to an existing setup is as simple as plugging them into the configured charging case and waiting a few seconds for automatic configuration.

The Unite Manager software additionally provides enhanced control, allowing for monitoring, maintenance, advanced configuration, and pairing options with Unite AP4 access points.

Designed for durability and flexibility, the case features recessed handles, butterfly locks, a reduced weight and with its fan-less design, it ensures quiet operation.

This product can be paired with an optional trolley which improves the ease of use during transport.

Features

Pairing button with Status and Power indicators
Ethernet port for network integration
USB connector for Pairing and Charging
Additional options via Unite Manager PC software for pairing via several chargers
Detachable lid with storage
Brackets to support the optional trolley

Delivery Includes

1 Unite CC

Technical Data

AC input 100-240 V AC, 50-60 Hz
Fuse 1 x 1.25 A (slow-blow) @ 230 V
-> factory installed
1 x 2.5 A (slow-blow) @ 115 V
-> spare fuse
Nominal current 2.2 A @ 115 V AC
1.1 A @ 230 V AC
Power consumption 157 W for 36 charging slots
Additional 5 W for USB-C port charging
Connections Ethernet
USB, type C
IEC 14 power socket
Operating temperature 0°C to +40°C
Storage temperature -20°C to +50°C
Relative humidity 0 - 90%
Dimensions inc. handle and feet (L x W x H)
Approximately 40.0 x 50.6 x 20.6 cm
Weight
8.7 kg (empty)
± 12.5 kg (full)

More Information
ManufacturerTelevic
