Televic UNITE CDD-8-4 Cockpit desktop charger

General Description

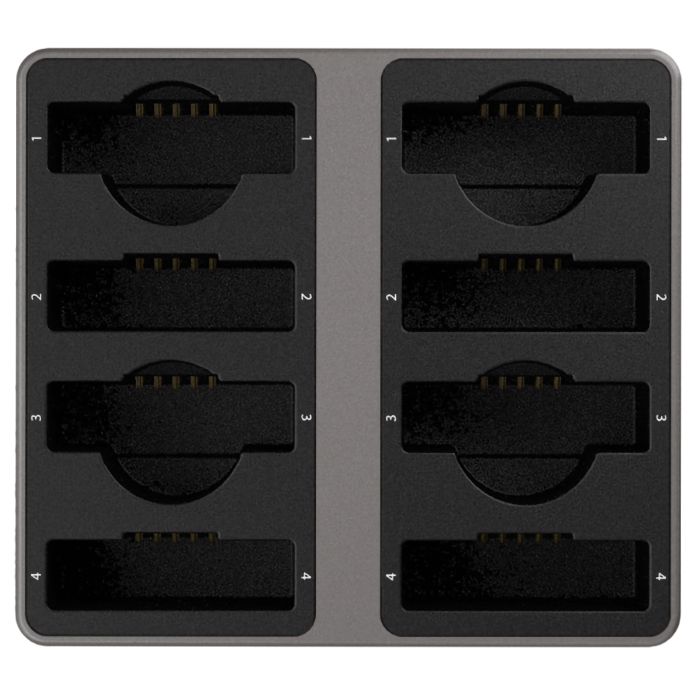

The Televic UNITE CDD-8-4 is a cockpit desktop charger that charges up to 8 Unite bodypack transmitters or receivers, and 4 docks that will accommodate 4 handheld microphones. The charger can be integrated into a network with other Unite components via the Ethernet port.

For more information on the Televic Unite system please click here.

Features

Desktop chargers for up to 8 pocket devices
4 charging slots can be used for handheld or pocket devices
Ethernet connection for network integration: Extended configuration, firmware update, pairing (coupling)
Function switch for: Pairing and reset
USB-C connector for: Pairing and charging

Delivery Includes

1 UNITE CDD-8-4

Downloads

Televic Unite tour guide system brochure

Technical Data

AC input: 90 – 2664 V, 47 – 63 Hz
Nominal current: 1 A @ 115 V AC, 0.7 @ 230 V AC
Power consumption: 50 W with 8 charging compartments
Output voltage: 12 V DC, 4.17 A
Max. charging time: approximately 4 hours
Connections: Ethernet, USB type C (USB 2.0, 0.5 A)
Temperature range in operation: 0 to +30°C, storage: -20 to +50 °C
Relative air humidity: 0 to 90%
Dimensions: W 147.5 x H 75.5 x D 163.5mm
Weight: 1080g
Charging compartments: 8 of which 4 combined charging compartments for handheld/bodypack devices
