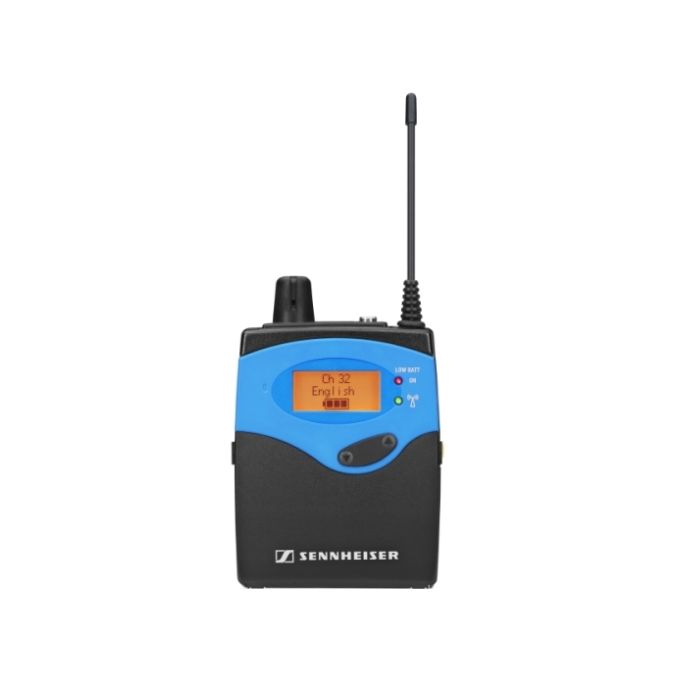

Sennheiser EK 1039 bodypack tourguide receiver

General Description

The EK 1039 is an exceptionally rugged tourguide receiver. It is designed for applications such as guided tours, multi-language interpretation, assistive listening and command applications for example in the fields of sports.
The EK 1039 can be used with earphones, headphones or induction loops with a 3.5 mm jack plug. The handling and operation of the receiver is very easy and intuitive. To every channel can be a name can be assigned, which is stored and shown along with the channel number and battery status on the backlit display. The high switching bandwidth and compatibility with wireless transmitters of the ew G3 100/300/500 series and 2000 series make the EK 1039 extremely flexible and give it the highest level of transmission reliability.

Features

Easy to operate
Simple channel selection and volume setting
Channel and battery status shown clearly on the display
Customisable channel name makes it easy to find the desired channel
Up to 32 preset channels
Copy function between receivers for easy preset handling
Configurable lock function for protection against unwanted operation
75 MHz switching bandwidth - the tourguide system with the widest range
Adaptive Diversity technology for improved RF reception quality
Reliable operation with standard AA cells or rechargeable batteries
Speech is highly intelligible thanks to an audio bandwidth of 15 kHz

Delivery Includes

1 receiver EK 1039
1 rechargeable battery BA 2015

Technical Data

Frequency band: UHF
Frequency range: DW Band: 790 - 865 MHz
Modulation: FM Analogue
Switching bandwidth: 72/ 75 MHz
Signal-to-noise ratio: > 90 dB (A)
Operating temperature: -10°C - +55°C
Storage temperature: -20°C - +70°C
Frequency response: 25 Hz – 15,000 Hz
Audio-XLR connector: 3.5 mm stereo jack-plug
Audio-Output-Power: 100 mW@ 32 ohms
Operating voltage (stand alone): 2x 1.5 V AA BA 2015 Battery Pack
Operating time (Accupack): approx. 8 h
Dimensions:82 x 64 x 24mm
Weight incl. Accu: 200g
