Contacta Test Signal Generator

£157.44 £131.20

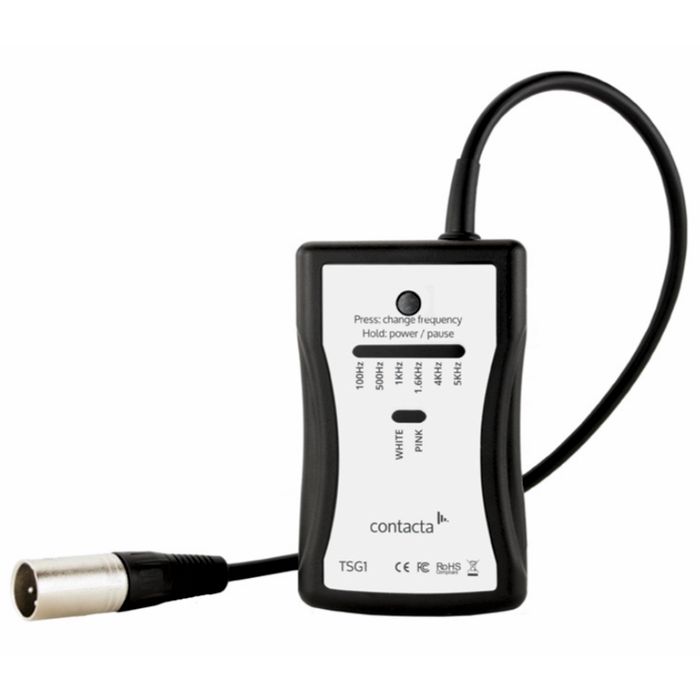

The Contacta Test Signal Generator is a compact handheld engineer’s tool for large area induction loop installations

Free shipping on all orders £150 and over

01686 628012

General Description

The Contacta Test Signal Generator is a compact handheld engineer’s tool for large area induction loop installations. When combined with a Contacta Field Strength Meter it allows measurement of hearing loop systems using multiple frequencies to verify the loop meets BS EN 60118-4 standards.

Features

Easily switches between the following frequencies:
100Hz, 500Hz, 1kHz, 1.6kHz, 4kHz, 5kHz, Pink noise and White noise
With XLR to connect direct to loop amp
LED display
Used to provide an input commission an induction loop hearing system

Delivery Includes

1 Contacta Test Signal Generator (TSG1)

Technical Data

Physical Data:
Dimensions
Height – 117.48mm (4.63”)
Width – 72.39mm (2.85”)
Depth – 25.4mm (1”)
Cable Length 300mm (11.81”)
Weight 244g (0.54lbs)
Construction ABS Plastic Housing
Finish Standard FR4 B
Signal Level -10dBv
Sine Wave Quality < 0.2% THD
Pink Noise Band 20Hz - 20KHz
White Noise Band 20Hz - 20KHz
Connector XLR male/3 pin phoenix connector
Power 2 x AA batteries
Automatic Power-Off 1 hour auto power-off

More Information
ManufacturerContacta
