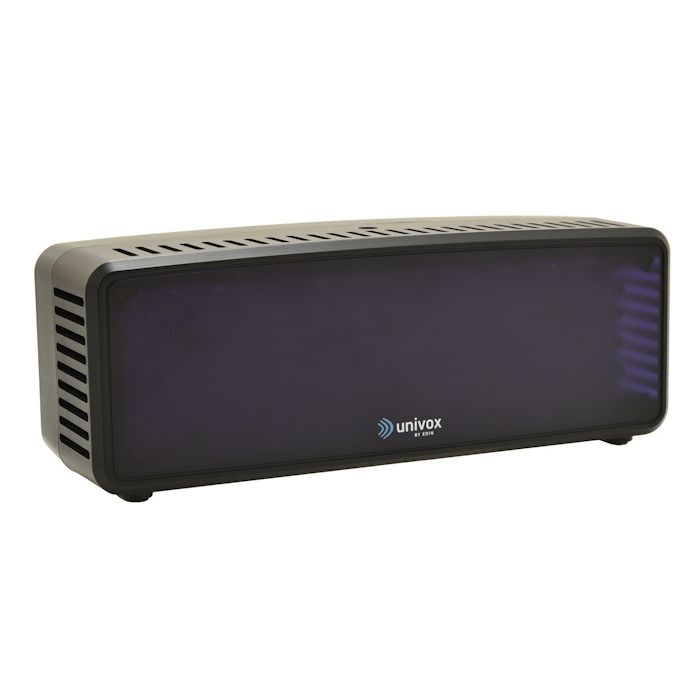

Univox IR 1411 2-channel infrared transmitter

General Description

The Univox IR1411 is a compact yet powerful infrared transmitter for small to medium size venues. The transmitter features an integrated modulator with microphone level and line level inputs.

The IR1411 provides wireless assistive listening with high audio quality. With two mono channels or single channel stereo operation on 2.3 and 2.8 MHz carrier frequencies, the unit is ideal for applications where information security and overspill control are of importance.

High performance IR diodes provide up to 730 sq/m in single channel operation. The system coverage can be increased with IR 1211 expansion radiators/emitters.

Features

Secure wireless communication
Compact design
2-Watt infrared emitter with integrated modulator
Selectable 2.3 and 2.8MHz carrier frequencies
Up to 730sqm (7858sqft) coverage range
Microphone level input with phantom power
Line level input
2 Mono channels or 1 stereo
72 High efficiency diodes for maximum coverage
Convection cooled
Automatic gain control
Power-save mode with Auto On/Off function
Audio level indicators
Volume controls
1/4 inch female mounting thread top and bottom

Delivery Includes

1 IR 1411 Infrared transmitter
1 Power supply unit
1 Wall/ceiling mount

Technical Data

Modulation FM, + 35kHz nominal + 50kHz peak
IR Light Wavelength 870nm
Carrier Frequency  2.3MHz, 2.8MHz   or Stereo: 2.3MHz (Left) and 2.8MHz (Right)
Pre-emphasis 50µS
Audio Frequency response 40Hz - 8kHz (±3 dB)
Total Harmonic Distortion < 1%
Signal-to-noise Ratio 75dB
Input 1 (XLR)  Balanced XLR Impedance: >50Ω / >2kΩ Sensitivity: -17dBu (100mVrms) to 6dBu (1.5Vrms)
Input 2 (Line 1/Line 2)  Unbalanced Line, Stereo Input. Two 3.5mm connectors
Input 3 (RCA IN)  Unbalanced Line, Stereo Input. Two (RCA) Phono connectors  Sensitivity: -14dBu (140mVrms) to 14dBu (4Vrms) Impedance: 10kΩ
Indicators Green LED: nominal range of audio level Red LED: audio peak indicator, approaching audio distortion
Output connection BNC x 1
RF Output Voltage Approx. 750 mVrms (2Vpp)
Output Impedance Approx. 50Ω
IR LEDs    72 diodes
Radiating Power    Approx. 2W
Coverage   Up to approx. 730m2
Supply Voltage   19VDC min - 28VDC max
Power Supply Input 100-240VAC 50/60Hz
Power Supply Output 24VDC @ 2A
Power Connection 2.5mm DC jack (or 4-Pin Phoenix connector)
Weight 450g (1lb); Power Supply: 360g
Gross weight 1.29kg
Dimensions (W) 210 x (D) 70 x (H) 80mm
Colour Black
