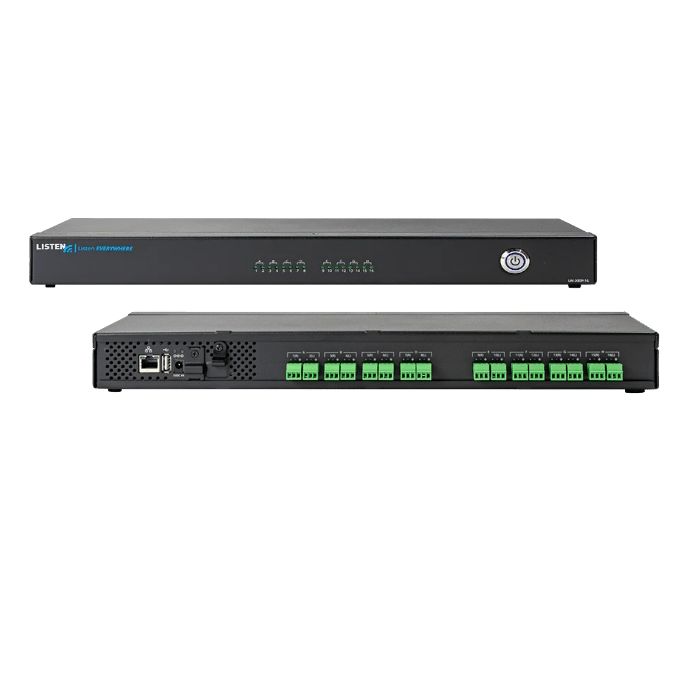

Listen Technologies LW-200P-16 LISTEN EVERYWHERE 16 channel Wi-Fi audio server

£5,532.96 £4,610.80

The Listen Technologies LW-200P-16 is a 16-channel server designed to
deliver audio to user’s smartphones. The system can either operate stand
alone or be connected to an existing Wi-Fi network. The free mobile app
provides up to a thousand users to stream audio directly to their device. Cloud
based management offers simple customisation, updates, and management
of the system.

Free shipping on all orders £150 and over

01686 628012

General Description

The Listen Technologies LW-200P-16 is a 16-channel server designed to
deliver audio to user’s smartphones. The system can either operate stand
alone or be connected to an existing Wi-Fi network. The free mobile app
provides up to a thousand users to stream audio directly to their device. Cloud
based management offers simple customisation, updates, and management
of the system.

The system can be configured to display welcome messages, videos, sliding banners, pdf documents, and offers. It supports portable smart iOS and Android devices and is ideal for use in concerts halls, theatres, exhibitions spaces, stadiums, sport bars, airport lounges, museums, music festivals, college campuses, places of worship and many other places.

Features

Up to 1000 users
16 Analog audio inputs
Smartphone BYOD (Bring Your Own Device) to receive the audio
Free dedicated app available for Apple and Android
Low Latency
Cloud based management and configuration
Uses existing wireless network

Delivery Includes

1 LW-200P-16 16 channel server
1 Power supply (UK)
1 Set of Rack Mount Brackets
1 1.83M (6 ft.) CAT6 Cable

Technical Data

Balanced Audio Inputs Terminal Block: 16 analogue inputs, rear panel, one terminal block connector per input, balanced, +4 dBu (line) nominal input level, +16 dBu maximum input level, impedance 100k ohm
*Each stereo channel requires the use of two inputs
Ethernet: RJ-45 supports 10/100/1000 Mbps speed. Green LED flashes at 100 Mbps, Yellow LED flashes at 1000 Mbps.
USB: Type A 2.0 (female)
Connector: DC Barrel Connector
Input Voltage: 100-240 VAC, 50-60Hz
Output Voltage: 5 VDC
Current: 6.0 A
Power: 30 W
IP Address: DHCP, Static, Reserved
Prioritization: QoS/ToS
Users: 1000 (per server)
Max Channels: 4 mono (2 stereo) - Multiple servers may be used to increase the number of channels.
WAP Support: 802.11n or better w/WMM enabled
Supported WAP Frequencies: 2.4 GHz & 5 GHz
Bandwidth Use: 125 kbps per user
Frequency Response: 20Hz – 20kHz ±1dB
Dynamic Range: 86 dB
Signal to Noise Ratio (SNR): 74 dB typical (at nominal input levels)
Bit depth: 16 bits
Sampling Rate: 48 kHz
Channel Security: AES-128-CBC
System Latency: 40 - 80 mS (60 mS average). This can vary per network and mobile device.
Total Harmonic Distortion (THD): <1%
App Support    iOS/Android Cloud Service: Yes, cloud service is available for remote server maintenance/updates. Cloud service also supports customization of the Android and iOS mobile apps, such as app theme settings, welcome ads, sliding banners, channel logos, channel names, pdf documents, and offers.
Warranty: 2 years
Dimensions: 45mm x 483mm x 117mm
Weight: 1.6 kg
Shipping Weight: 2.6 kg
Rack Space: 1RU
Temperature – Operation: -10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature – Storage: -20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity: 0 to 95% relative humidity, non-condensing
