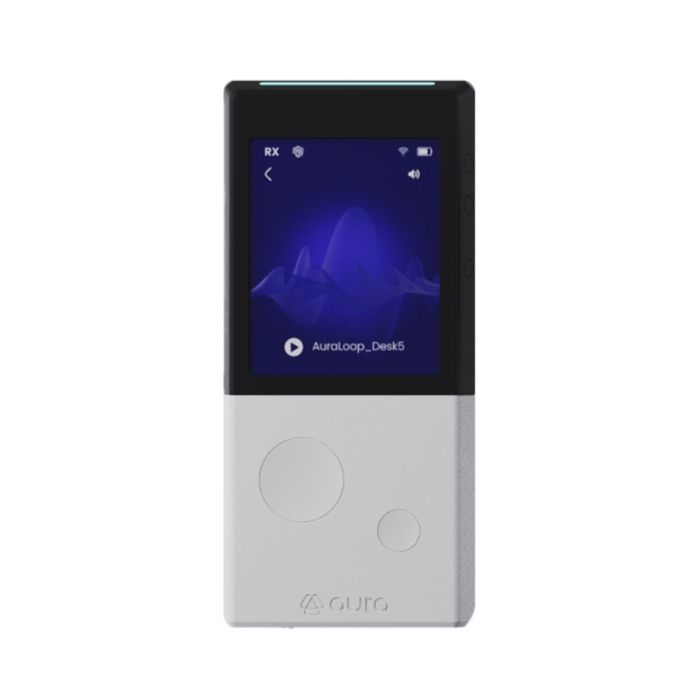

Opus AuraSTRX Auracast™ transmitter receiver

General Description

The Opus AuraSTRX is a dedicated Auracast™  transmitter and receiver with touchscreen.

Auracast™ is a new standard for Bluetooth Low Energy audio transmission which enables one-to-many sharing of audio.

The dual purpose AuraSTRX operates as both a portable Auracast™ transmitter and receiver.

When transmitting, the AuraSTRX enables hassle-free audio sharing by broadcasting to others. The presenter can either speak into the integrated microphone (that automatically activates thanks to the accelerometer) or plug in an external microphone/audio source. The screen can display a QR code to enable a private group to connect. Each group can be easily identified by the screen and LED banner colour.

When receiving, the AuraSTRX can automatically scan for active Auracast™ streams or connect via a QR code. The user then can listen to the audio by connecting an earphone, headphones or (if they have a loop compatible hearing aid) a neck loop.

Features

Transmit - Create small portable Auracast™ group
Receive – Listen to an Auracast™ audio stream
QR code generator and reader
Automatic screen brightness
Intelligent screen shut-off due to internal accelerometer
Intuitive User Interface with touchscreen and tactile buttons
Easy configuration
Ideal for guided tours or simultaneous interpretation
All day battery life

Delivery Includes

1 AURASTRX

Technical Data

Connectivity Bluetooth 5.2 (BLE)
Operation frequency 2.402 to 2.480 MHz
Auracast™ mode Transmitter or Receiver
Encryption AES-CCM
Transmitter power 10 dBm
Reception sensitivity- 95 dBm
Touch screen 2,8-inch, LCD
Mechanical L5 buttons
Configuration Screen or AuraConnect application
Update AuraConnect application
QR code reader Connect to broadcast
Light sensor Adjust screen brightness
Proximity sensor Detect user
Accelerometer Detect position of AuraSTRX
Status LED RGB multifunction
Mode Stereo or Mono
Connection 3,5 mm, 3 or 4 pins
Impedance 16 or 32 Ohm
Nominal input 57 mW RMS per channel
Connection 3,5 mm, 4 pins
Input Micro via Jack 3,5 mm
Dimensions 130 x 60 x 14
Net weight 85g
Temperature storage-15 to 60°C
Protection rating IP64
Sample rate 16 kHz 24 kHz 48 kHz
Codec LC
Frequency responses 16 kHz : 50 to 7.500 Hz 24 kHz : 50 to 11.000 Hz 48 kHz : 50 to 19.500 Hz
Latency 30 ms with AuraGate
Power supply USB-C or docking station
Power 5 V, 500 mA
Dock connection USB-C
Battery 3,7 V, 1700 mAh
Screen always ON, TX, @10dBm > 8 hours
Screen OFF, TX, @10dBm > 20 hours
Screen always ON, RX > 10 hours
Screen OFF, RX > 50 hours

The range and the exact number of channels supported will depend on environmental factors.
Specifications are subject to change without notice
