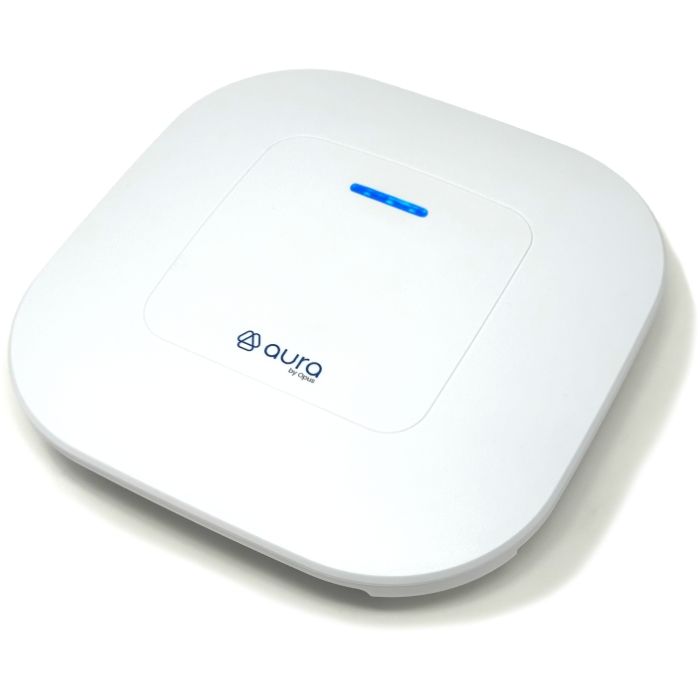

Opus AuraGate transmitter

General Description

The Opus AuraGate is an innovative Auracast™  broadcast transmitter designed to deliver a high-quality audio experience to compatible hearing aids, headphones, cochlear implants or dedicated receivers.

Auracast™ is a new standard for Bluetooth Low Energy audio transmission which enables one-to-many sharing of audio.

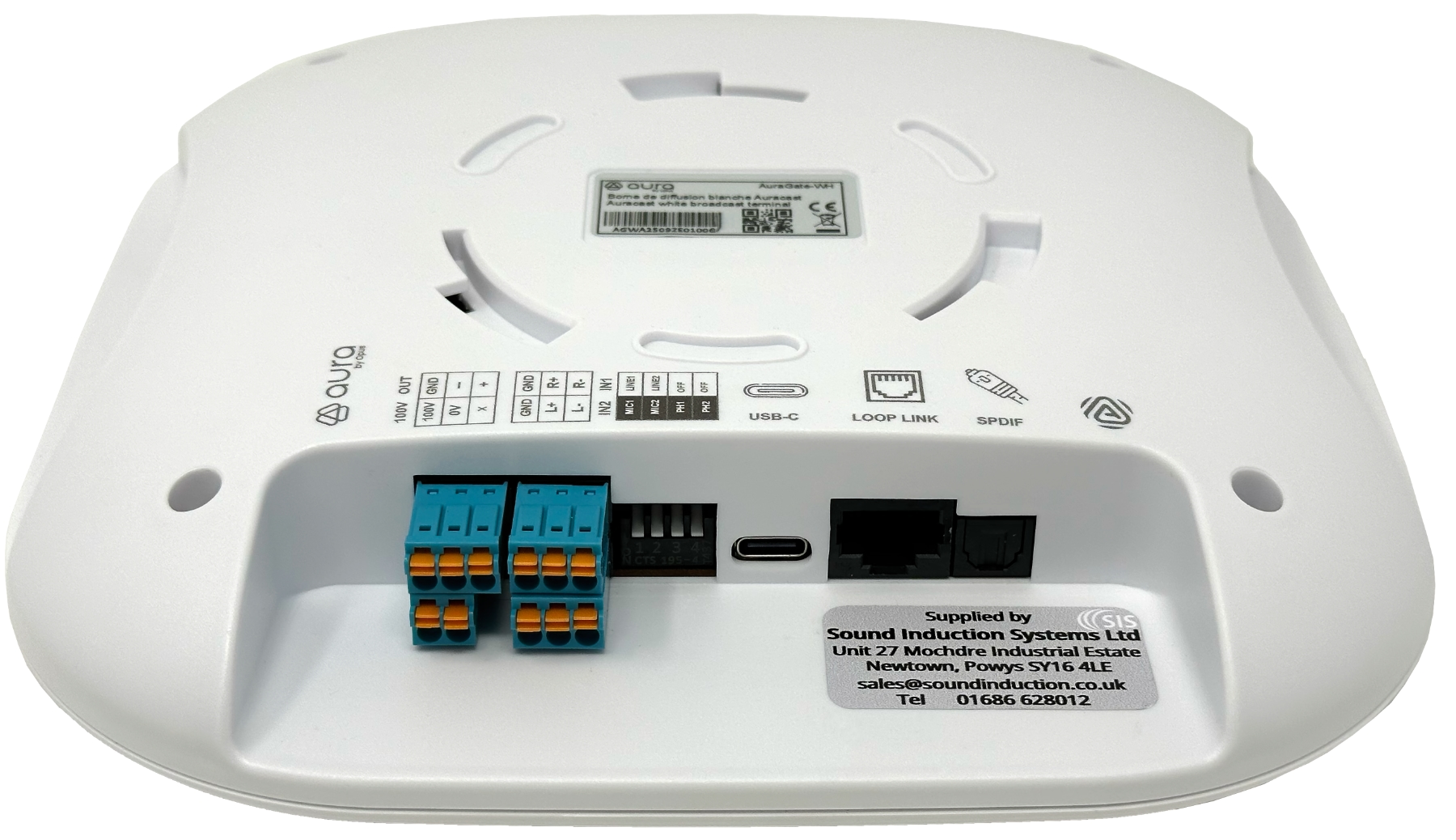

The two channel AuraGate terminal has a selection of audio inputs available. These include microphone level (with switchable phantom power), line level, 100v line loudspeaker level, SPDIF optical and USB-C.

System configuration is quick and easy via the intuitive AuraConnect app (Android and iOS available). The broadcast name, audio quality, range and, if required, access code can all be programmed. The code can then either be shared or a QR code can be generated.

The versatile bracket enables the AuraGate to be easily wall or ceiling mounted.

Auracast™ enables crowded public spaces to offer clear audio in concerts halls, theatres, universities, exhibitions spaces, stadiums, silent screens in gymnasiums, sport bars, airport lounges, waiting rooms, museums, music festivals and many other places where multi-channel BYOD (Bring Your Own Device) audio streaming is required.

Features

Wide range of audio inputs

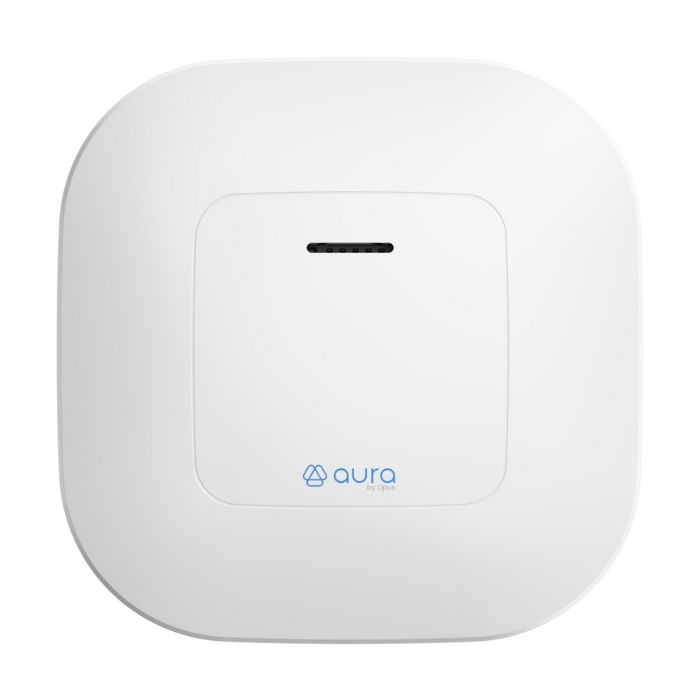

Available in white or black
Multifunction status LED
Compatible with Opus AuraSTRX

Delivery Includes

1 AuraGate

Technical Data

Connectivity Auracast™  (Bluetooth 5.2 and up)
Operation frequency 2.402 to 2.480 MHz
Auracast™  mode Transmitter
Encryption AES-CCM
Transmitter power 10 dBm
Mechanical button functions 4 switches : First function : Micro/LINE/Phantom Second function : set to BLE/CONFIG/UPDATE or AURACAST™  mode Configuration AuraConnect application
Update AuraConnect application
Status LED RGB multifunction
Auracast™  stereo Quality : 16, 24 or 48 kHz
Multi-channel Up to 2 Auracast™  stream
Measured range 150m (open range)
Mode Mono
Connection 3 pin (differential)
Impedance 4 or 8 Ohm
Nominal output 400 mW
LINE or MICRO inputs 2x LINE/MICRO inputs
100 V input 1x 100 V terminal input
SPDIF input 1x SPDIF input
USB input 1x USB-C input
Compatible with our LD Opus Technologies  product range
Onboard microphone Yes
Sample rate 16 kHz 24 kHz 48 kHz
Codec LC3
Frequency responses 16 kHz : 50 to 7.500 Hz 24 kHz : 50 to 11.000 Hz 48 kHz : 50 to 19.500 Hz
Latency 30 ms
Automatic Gain Control (AGC) Yes
Power supply USB-C
Power 5 V, 300 mA
Dock connection USB-C / PoE
Dimensions (L x W x D) 190 x 190 x 50 mm
Weight 250g
Temperature storage -15 to 60°C

The range and the exact number of channels supported will depend on environmental factors.
Specifications are subject to change without notice
