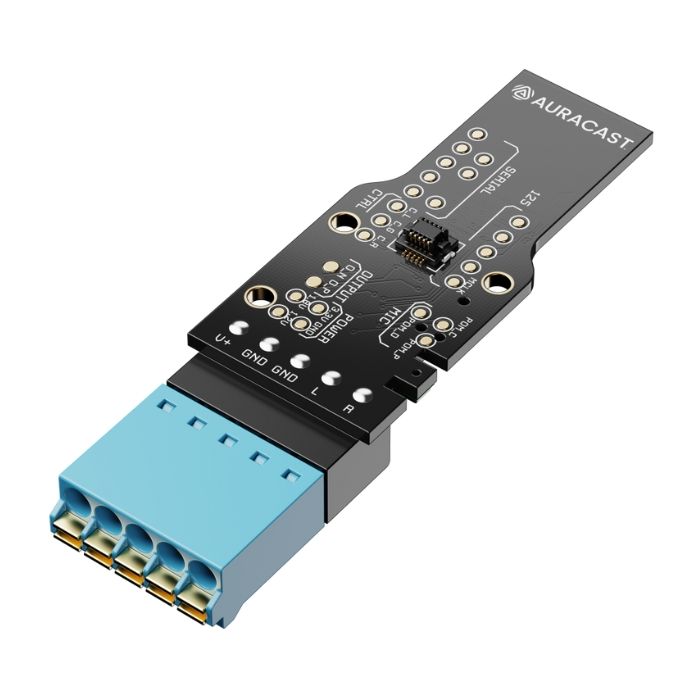

Opus AurOEM transmitter module

General Description

The Opus AurOEM is a compact electronic card that simplifies the integration of Auracast™ technology into various products.

By leveraging Opus Technologies' expertise in embedded Auracast™  solutions, the AurOEM accelerates development, reduces time-to-market, and enhances product functionality with advanced broadcast features.

This compact and versatile solution offers customisation options, dedicated technical support and a cost-effective approach to integrating cutting-edge audio broadcasting capabilities.

Features

Seamless Integration
Time-Saving Solution
Enhanced Functionality
Versatility
Technical Support
Proven Expertise
Future-Proof Technology
Improved User Experience
Customization Options
Cost-Effective Solution

Delivery Includes

1 AUROEM

Technical Data

LINE or MICRO inputs 1x LINE mono or stereo
Microphone input Integrated on the circuit board
Power output 3 dbm
Multi-channel Up to 2 transmission channels: 1 mono or 1 stereo
Voltage 5 -12V DC / 1.5A
Current < 100 mA
Connectivity Auracast™  (Bluetooth 5.2 and up)
Qualification Bluetooth SIG
Update Wireless via AuraConnect application
Range field 30 m (free field)
On-board memory 2 Mo
Audio configuration 2 mono or 1 stereo
Codec used LC3
Cybersecurity LESECURE encrypted audio stream protected by a unique password
Connection Via QR code or password
Sampling frequencies 16/24/48 kHz
Dimensions (L x W x D) 48 x 20.5 x 10.5 mm
Weight < 5 g

The range and the exact number of channels supported will depend on environmental factors.
Specifications are subject to change without notice
